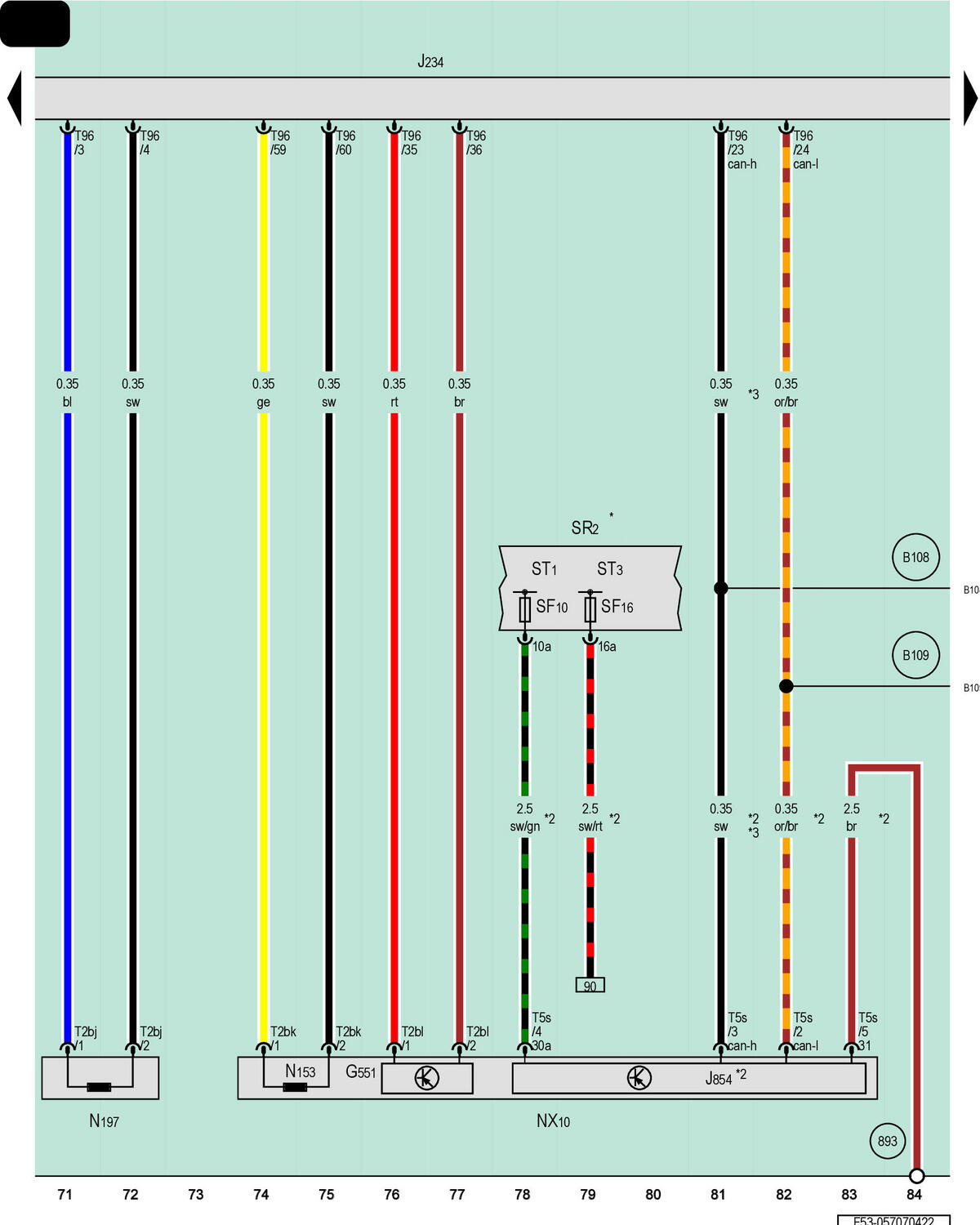

Driver Belt Force Limiter, Airbag Control Module, Left Front Seat Belt, Driver Seat Belt TENSIONER Igniter 1, Passenger Side Rear Seat Belt TENSIONER Igniter
G551
Driver Belt Force Limiter
J234
Airbag Control Module
J854
Left Front Seat Belt Tensioner Control Module
NX10
Left Front Seat Belt
N153
Driver Seat Belt Tensioner Igniter 1
N197
Passenger Side Rear Seat Belt Tensioner Igniter
ST1
Fuse Panel 1, Black
SR2
Relay and Fuse Panel 2
ST3
Fuse Panel 3, Brown
SF10
Fuse 10 (On Fuse Panel F)
SF16
Fuse 16 (On Fuse Panel F)
T2bj
2-Pin Connector, Yellow
T2bk
2-Pin Connector, Yellow, Green
T2bl
2-Pin Connector, Yellow
T5s
5-Pin Connector, Naturally Cloudy
T96
96-Pin Connector, Yellow
893
Ground Connection 2 on Left B-Pillar
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Depending on Equipment
*3
Different Wire Color Possible
