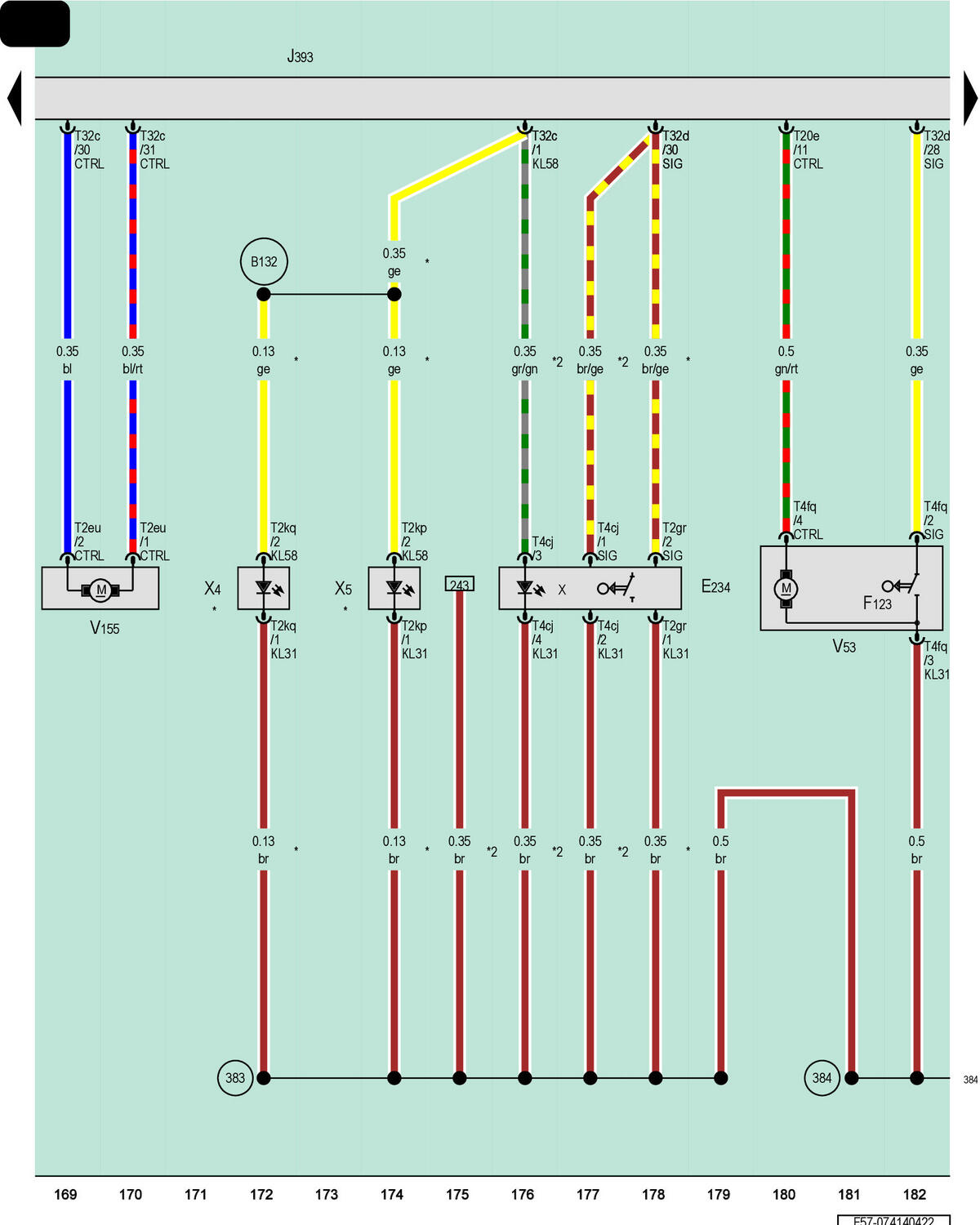

Release Button In Rear Lid Handle, Rear Lid Alarm Switch, Comfort System Central Control Module, Rear Lid Central Locking System Motor, Fuel Filler Door Lock Motor, License Plate Lamp, Left License Plate Lamp, Right License Plate Lamp

Courtesy of AUDI OF AMERICA, LLC

E234

Release Button in Rear Lid Handle

F123

Rear Lid Alarm Switch

J393

Comfort System Central Control Module

T2eu

2-Pin Connector, Black

T2gr

2-Pin Connector, Black

T2kp

2-Pin Connector, Black

T2kq

2-Pin Connector, Black

T4cj

4-Pin Connector, Black

T4fq

4-Pin Connector, Black

T20e

20-Pin Connector, Black

T32c

32-Pin Connector, Naturally Cloudy

T32d

32-Pin Connector, Blue

V53

Rear Lid Central Locking System Motor

V155

Fuel Filler Door Lock Motor

License Plate Lamp

Left License Plate Lamp

Right License Plate Lamp

383

Ground Connection 18 (in Main Wiring Harness)

384

Ground Connection 19 (in Main Wiring Harness)

B132

License Plate Lamp Connection (in Interior Wiring Harness)

Coupe

For Convertible
