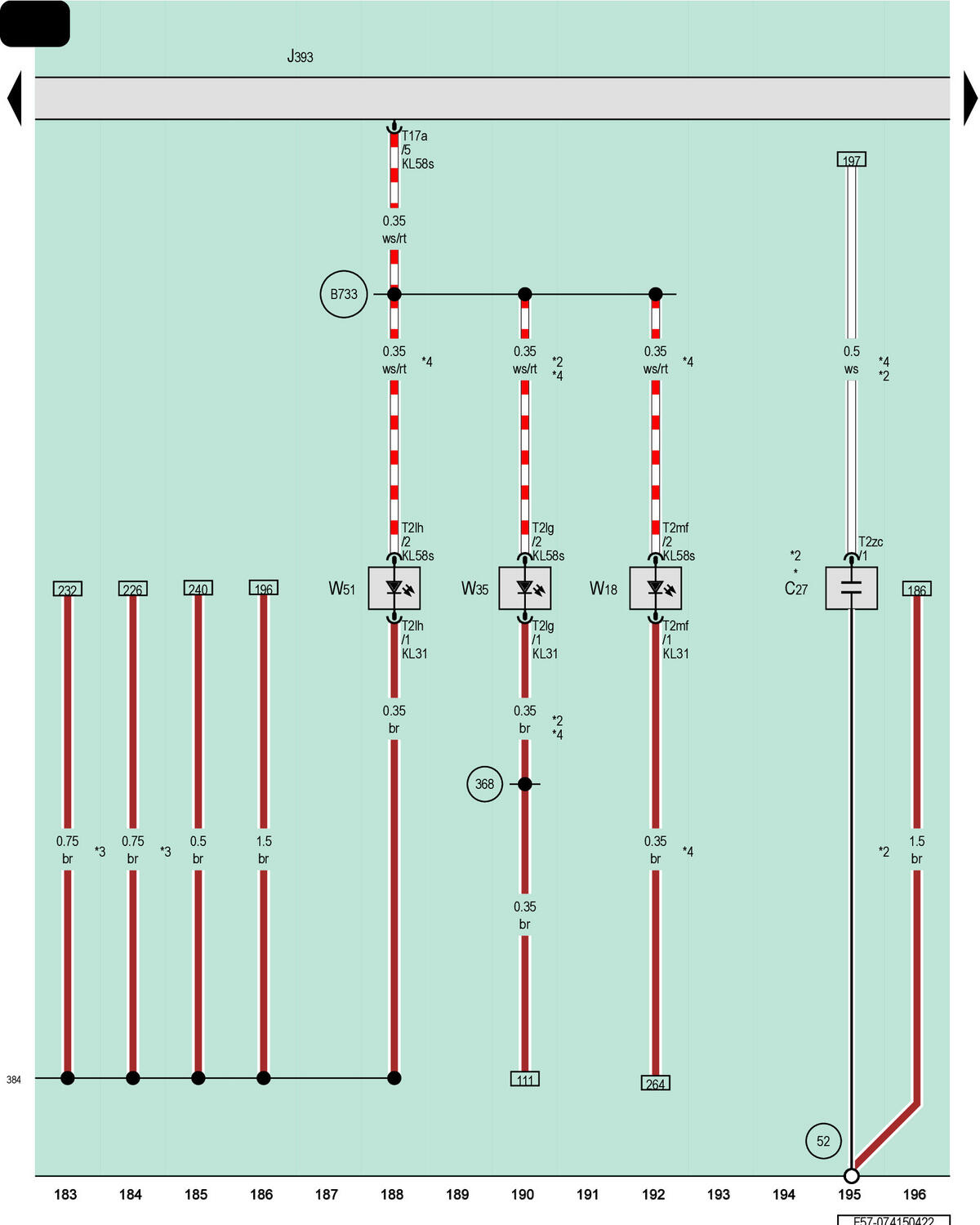

Rear Window Defogger Suppressor, Comfort System Central Control Module, Left Luggage Compartment Lamp, Right Luggage Compartment Lamp, Rear Lid Lamp

Courtesy of AUDI OF AMERICA, LLC

C27

Rear Window Defogger Suppressor

J393

Comfort System Central Control Module

T2lg

2-Pin Connector, Black

T2lh

2-Pin Connector, Black

T2mf

2-Pin Connector, Black

T2zc

2-Pin Connector, Black

T17a

17-Pin Connector, Brown

W18

Left Luggage Compartment Lamp

W35

Right Luggage Compartment Lamp

W51

Rear Lid Lamp

52

Ground Connection in Rear Lid, Left

368

Ground Connection 3 (in Main Wiring Harness)

384

Ground Connection 19 (in Main Wiring Harness)

B733

Connection 58s (in Main Wiring Harness) 3

*

If Available

*2

Coupe

*3

Through September 2019

*4

Diameter Depends on Equipment
