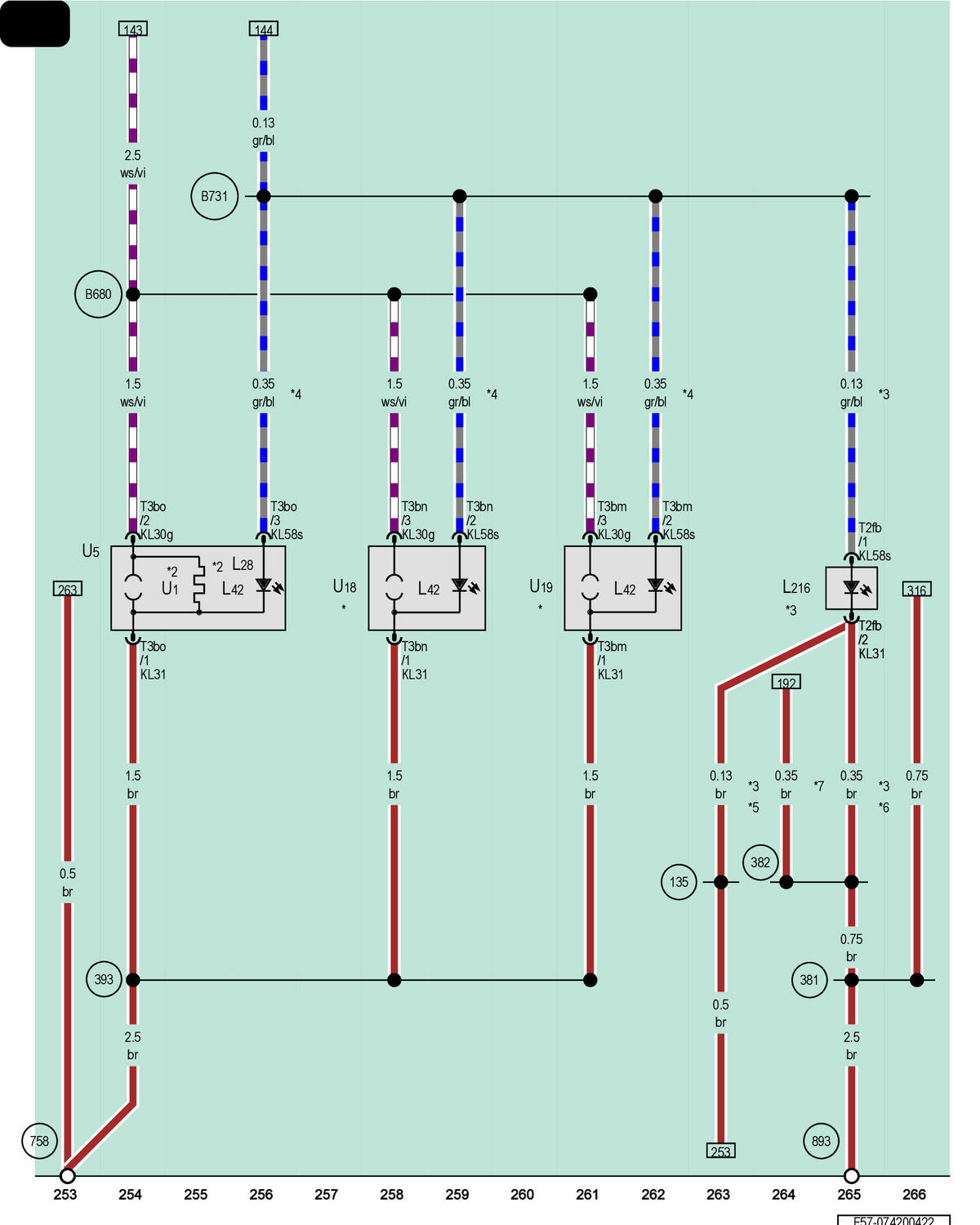

Rear Vent Illumination Bulb, Cigarette Lighter, 12 V Socket, 12 V Socket 2, 12 V Socket 3
L28
Cigarette Lighter Illumination Bulb
L42
Socket Illumination Bulb
L216
Rear Vent Illumination Bulb, Center
T2fb
2-Pin Connector, Black
T3bm
3-Pin Connector, Black
T3bn
3-Pin Connector, Black
T3bo
3-Pin Connector, Black
U1
Cigarette Lighter
U5
12 V Socket
U18
12 V Socket 2, In the Rear Center Console
U19
12 V Socket 3, In the Rear Center Console
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
381
Ground Connection 16 (in Main Wiring Harness)
382
Ground Connection 17 (in Main Wiring Harness)
393
Ground Connection 28 (in Main Wiring Harness)
758
Ground Connection 3 on Center Tunnel
893
Ground Connection 2 on Left B-Pillar
B680
Connection (Socket) in Interior Wiring Harness
B731
Connection 58s (in Main Wiring Harness) 1
*
Pre-Wired Component
*2
For Vehicles with a Smoking Package
*3
Depending on Equipment
*4
Omitted as a Running Change
*5
Through October 2017
*6
From November 2017
*7
Diameter Depends on Equipment
