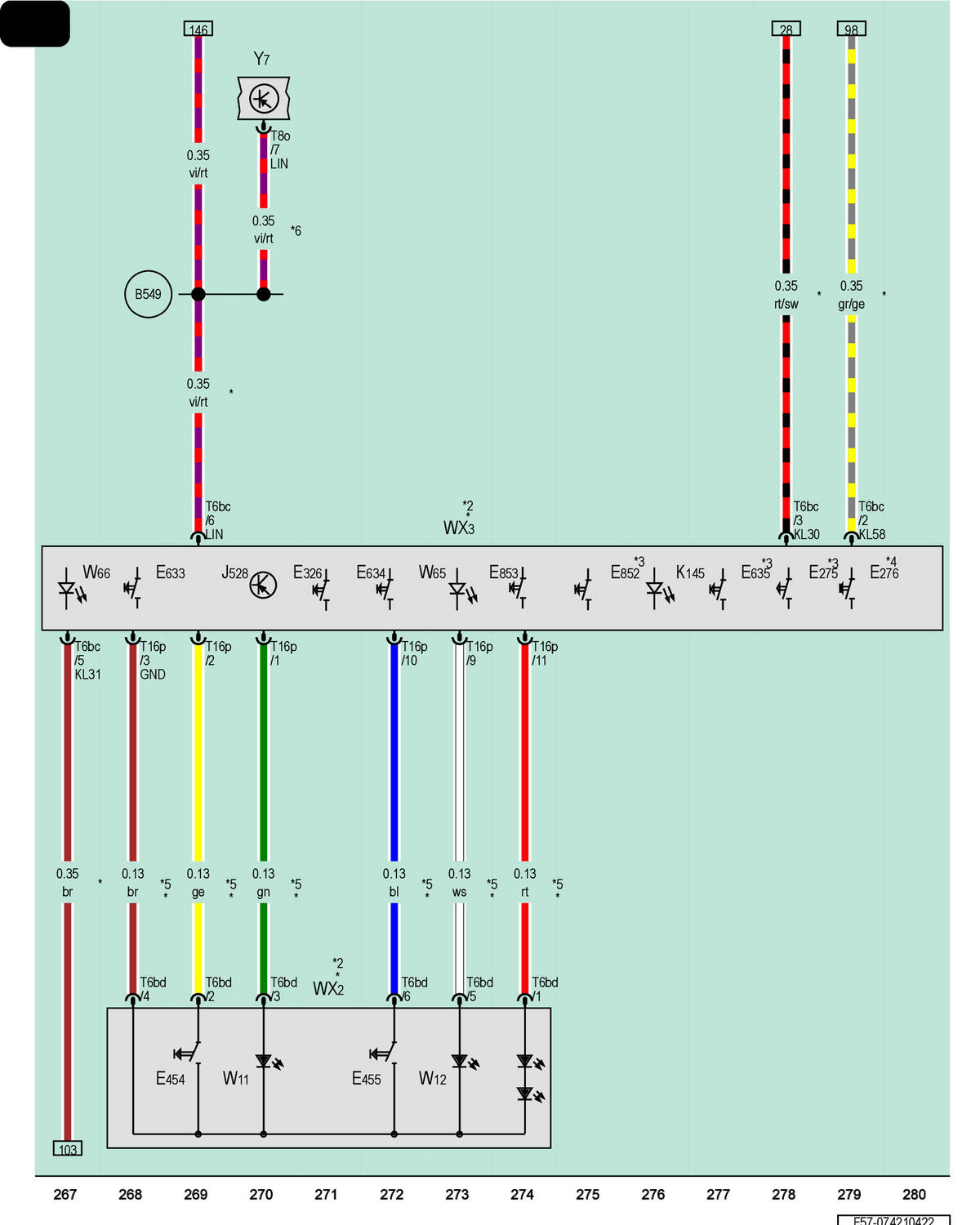

Left Front Reading Lamp Button, Right Front Reading Lamp Button, Front Passenger Airbag -Disabled- Indicator Lamp, Rear Interior Lamp, Front Roof Module, Left Front Reading Lamp, Right Front Reading Lamp
E275
Roadside Assistance Button
E276
Emergency Call Button
E326
Front Interior Lamp Button
E454
Left Rear Reading Lamp Switch
E455
Right Rear Reading Lamp Switch
E633
Left Front Reading Lamp Button
E634
Right Front Reading Lamp Button
E635
Rear Reading Lamp Front Button
E852
Rear Roof Function Button
E853
Automatic Interior Light Switch Button
J528
Roof Electronics Control Module
K145
Front Passenger Airbag -Disabled- Indicator Lamp
T6bc
6-Pin Connector, Black
T6bd
6-Pin Connector, Black
T8o
8-Pin Connector, Black
T16p
16-Pin Connector, Brown
WX2
Rear Interior Lamp, Center
WX3
Front Roof Module
W11
Left Rear Reading Lamp
W12
Right Rear Reading Lamp
W65
Left Front Reading Lamp
W66
Right Front Reading Lamp
Y7
Automatic Dimming Interior Rearview Mirror
B549
LIN Bus Connection 2 (in Main Wiring Harness)
*
Coupe
*2
Refer to the Applicable Convertible Top Wiring Diagram
*3
For Vehicles with Panorama Sunroof
*4
Depending on Equipment
*5
Adapter Cable
*6
For Vehicles Without High Beam Assist
