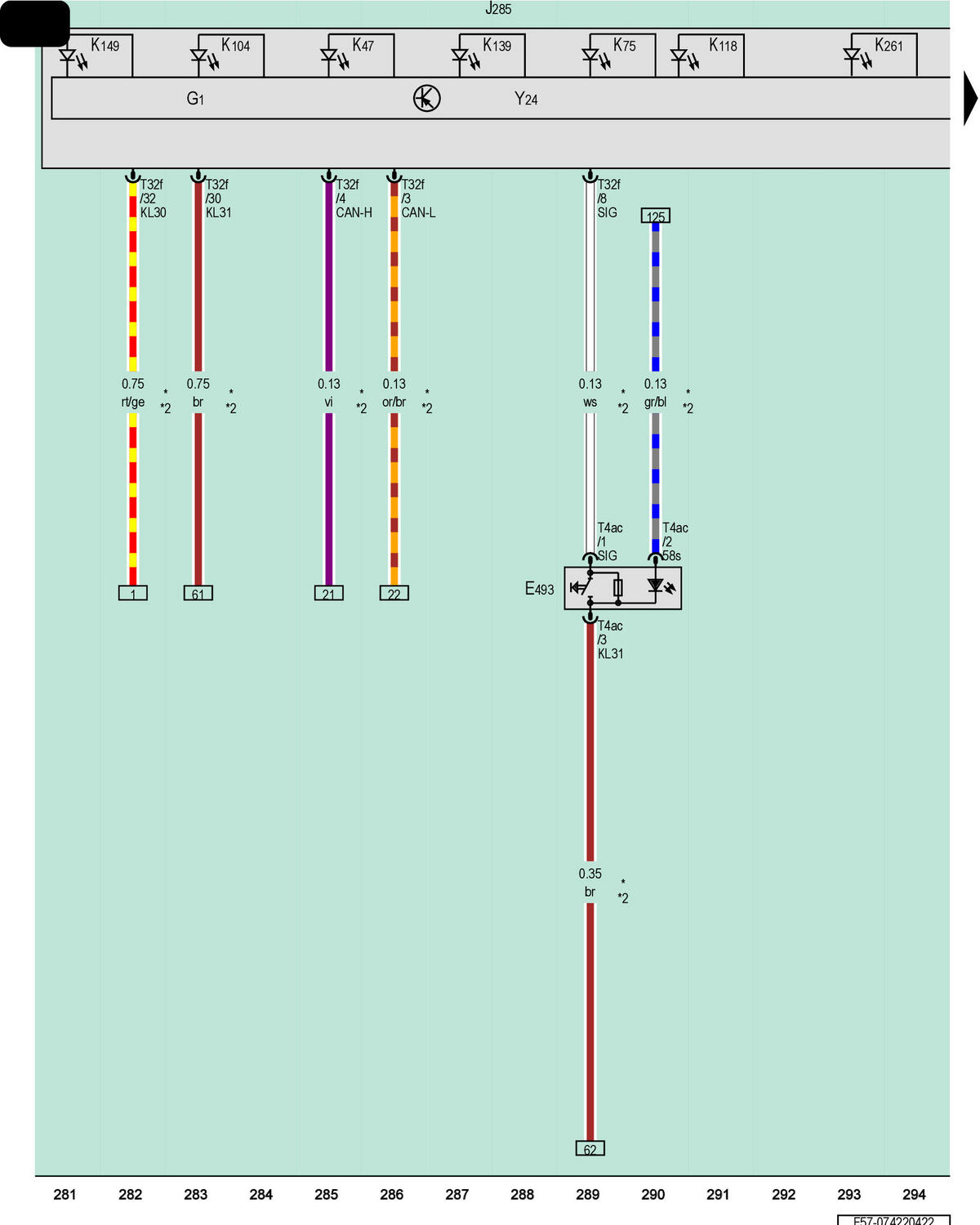

Instrument Cluster Operation Button, Instrument Cluster Control Module, Display Unit In Instrument Cluster
E493
Instrument Cluster Operation Button
G1
Fuel Gauge
J285
Instrument Cluster Control Module
K47
ABS Indicator Lamp
K75
Airbag Indicator Lamp
K104
Diesel Electronics Indicator Lamp
K118
Brake System Indicator Lamp
K139
Parking Brake Indicator Lamp
K149
Engine Electronics Indicator Lamp
K261
Left Turn Signal Indicator Lamp
T4ac
4-Pin Connector, Black
T32f
32-Pin Connector, Gray
Y24
Display Unit in Instrument Cluster
*
Through September 2019
*2
Refer to Applicable Wiring Diagram for Instrument Cluster
