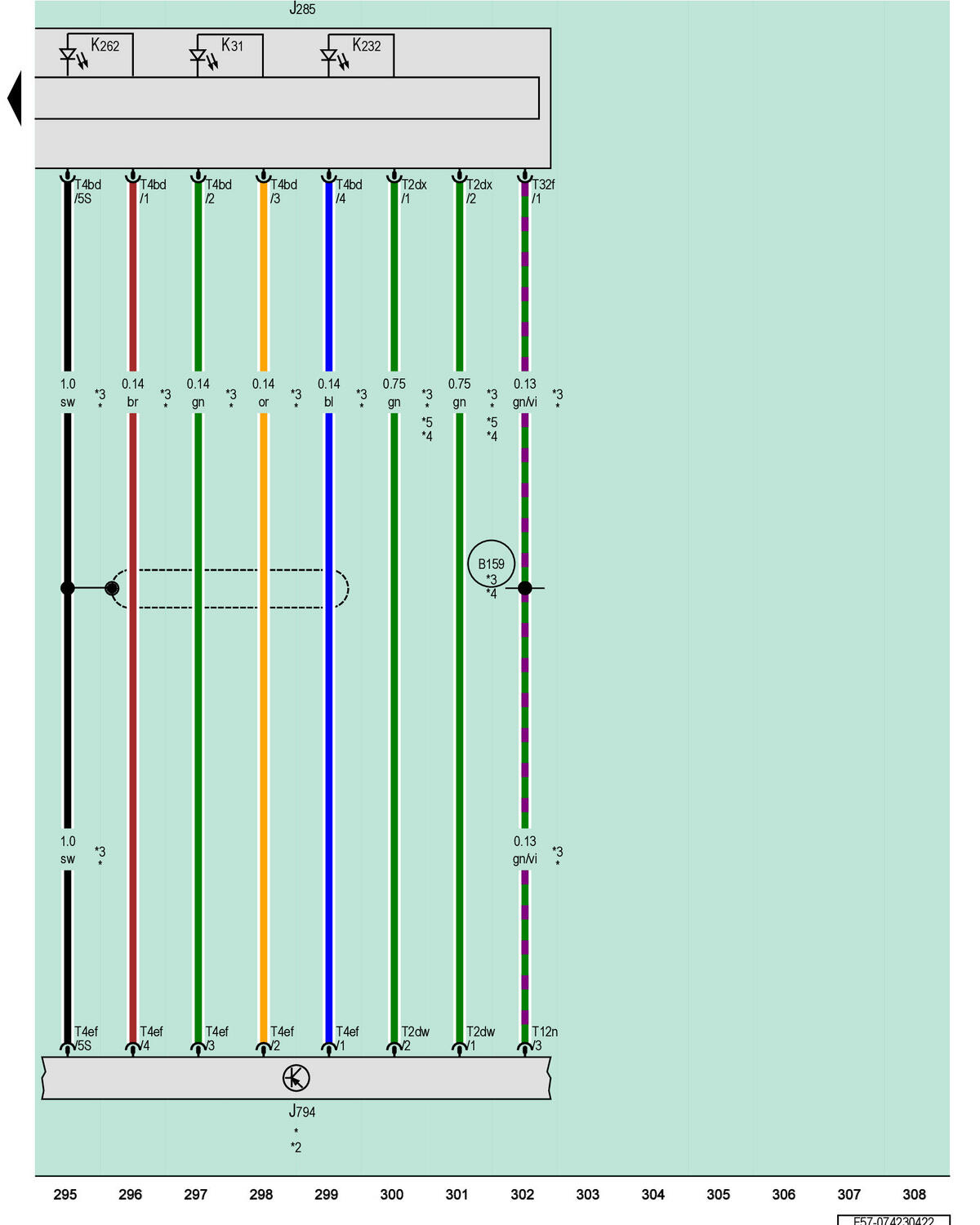

Instrument Cluster Control Module, Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module

J794

Information Electronics Control Module 1

K31

Cruise Control Indicator Lamp

K232

Lane Change Assistance Indicator Lamp

K262

Right Emergency Flasher Indicator Lamp

T2dw

2-Pin Connector, Black

T2dx

2-Pin Connector, Black

T4bd

4-Pin Connector, Black

T4ef

4-Pin Connector, Yellow

T12n

12-Pin Connector, Gray

T32f

32-Pin Connector, Gray

B159

Diagnostic Connection (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram for Instrument Cluster

*2

Refer to Applicable MMI (Information Electronics) Wiring Diagram

*3

Through September 2019

*4

Refer to Applicable Wiring Diagram for Infotainment Most Bus

*5

Fiber Optic Cable
