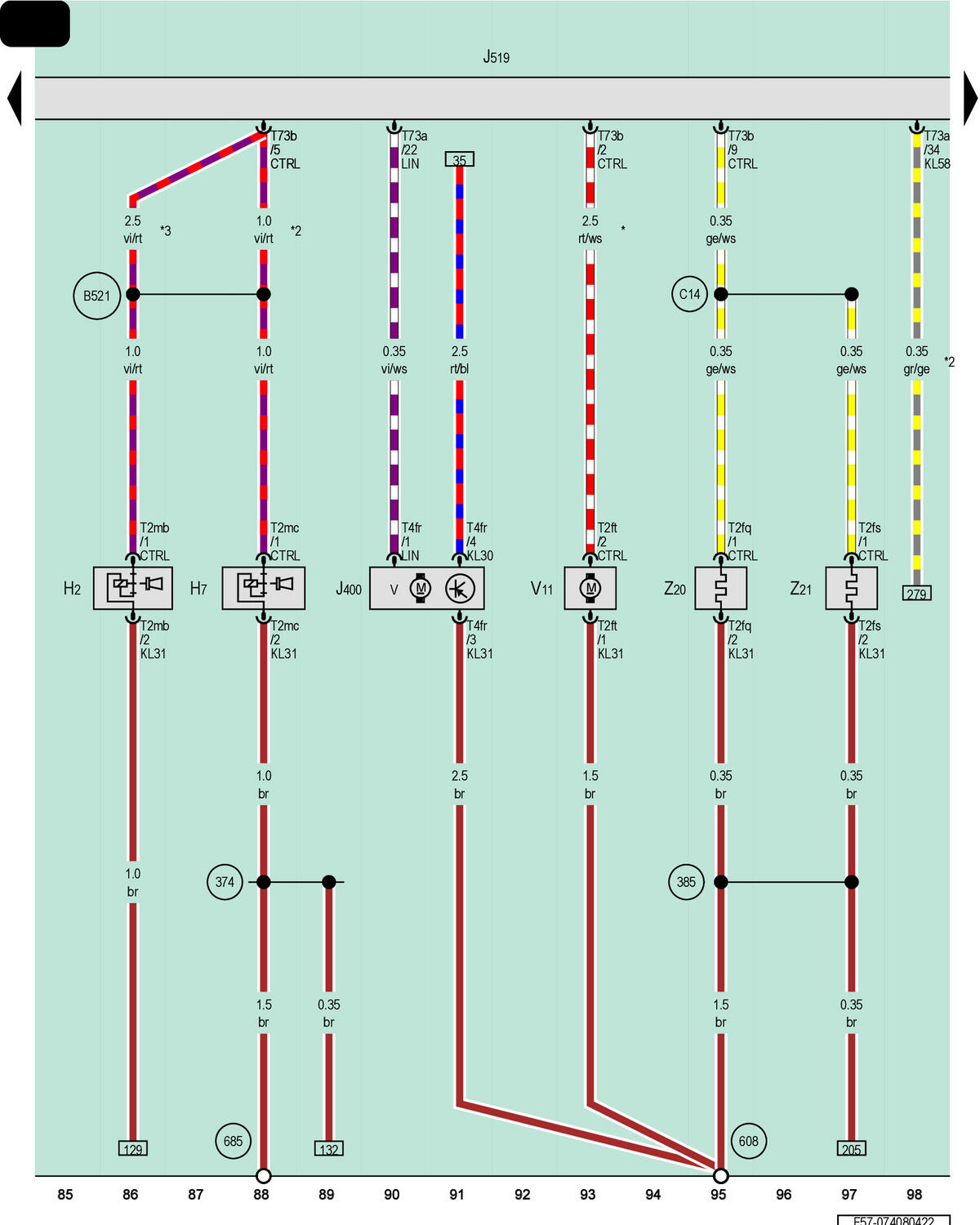

High Tone Horn, Low Tone Horn, Wiper Motor Control Module, Vehicle Electrical System Control Module, Windshield Wiper Motor, Headlamp Washer System Pump, Left Washer Nozzle Heater, Right Washer Nozzle Heater
H2
High Tone Horn
H7
Low Tone Horn
J400
Wiper Motor Control Module
J519
Vehicle Electrical System Control Module
T2fq
2-Pin Connector, Black
T2fs
2-Pin Connector, Black
T2ft
2-Pin Connector, Black
T2mb
2-Pin Connector, Black
T2mc
2-Pin Connector, Black
T4fr
4-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
V
Windshield Wiper Motor
V11
Headlamp Washer System Pump
Z20
Left Washer Nozzle Heater
Z21
Right Washer Nozzle Heater
374
Ground Connection 9 (in Main Wiring Harness)
385
Ground Connection 20 (in Main Wiring Harness)
608
Ground Connection in Plenum Chamber, Center
685
Ground Connection 1 on Right Front Longitudinal Member
B521
Dual Tone Horn Connection (in Main Wiring Harness)
C14
Positive Connection (15) (in Heated Windshield Washer Nozzle Wiring Harness)
*
1.5 Diameter Possible
*2
Coupe
*3
For Convertible
