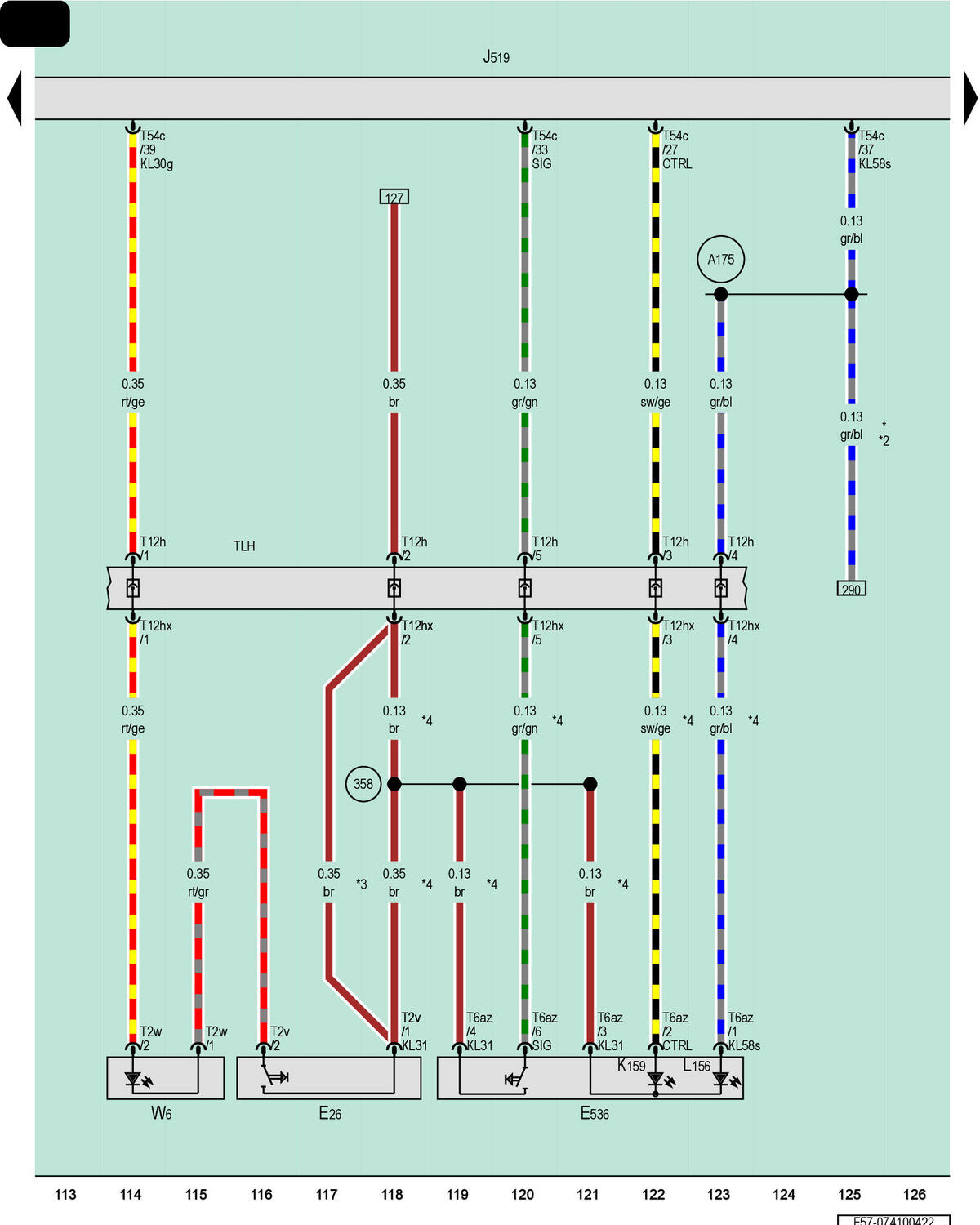

Glove Compartment Lamp Switch, Vehicle Electrical System Control Module, Valet Parking Indicator Lamp, Switch Illumination Bulb, Glove Compartment Lamp

Courtesy of AUDI OF AMERICA, LLC

E26

Glove Compartment Lamp Switch

E536

Valet Parking Lock Button

J519

Vehicle Electrical System Control Module

K159

Valet Parking Indicator Lamp

L156

Switch Illumination Bulb

T2v

2-Pin Connector, Black

T2w

2-Pin Connector, Black

T6az

6-Pin Connector, Red

T12h

12-Pin Connector, Black

T12hx

12-Pin Connector, Black

T54c

54-Pin Connector, Black

TLH

Glove Compartment Wiring Harness Coupling Point

W6

Glove Compartment Lamp

358

Ground Connection (in Glove Compartment Wiring Harness)

A175

Connection 58s (in Instrument Panel Wiring Harness)

*

Through September 2019

*2

Refer to Applicable Wiring Diagram for Instrument Cluster

*3

Version 1

*4

Version 2
