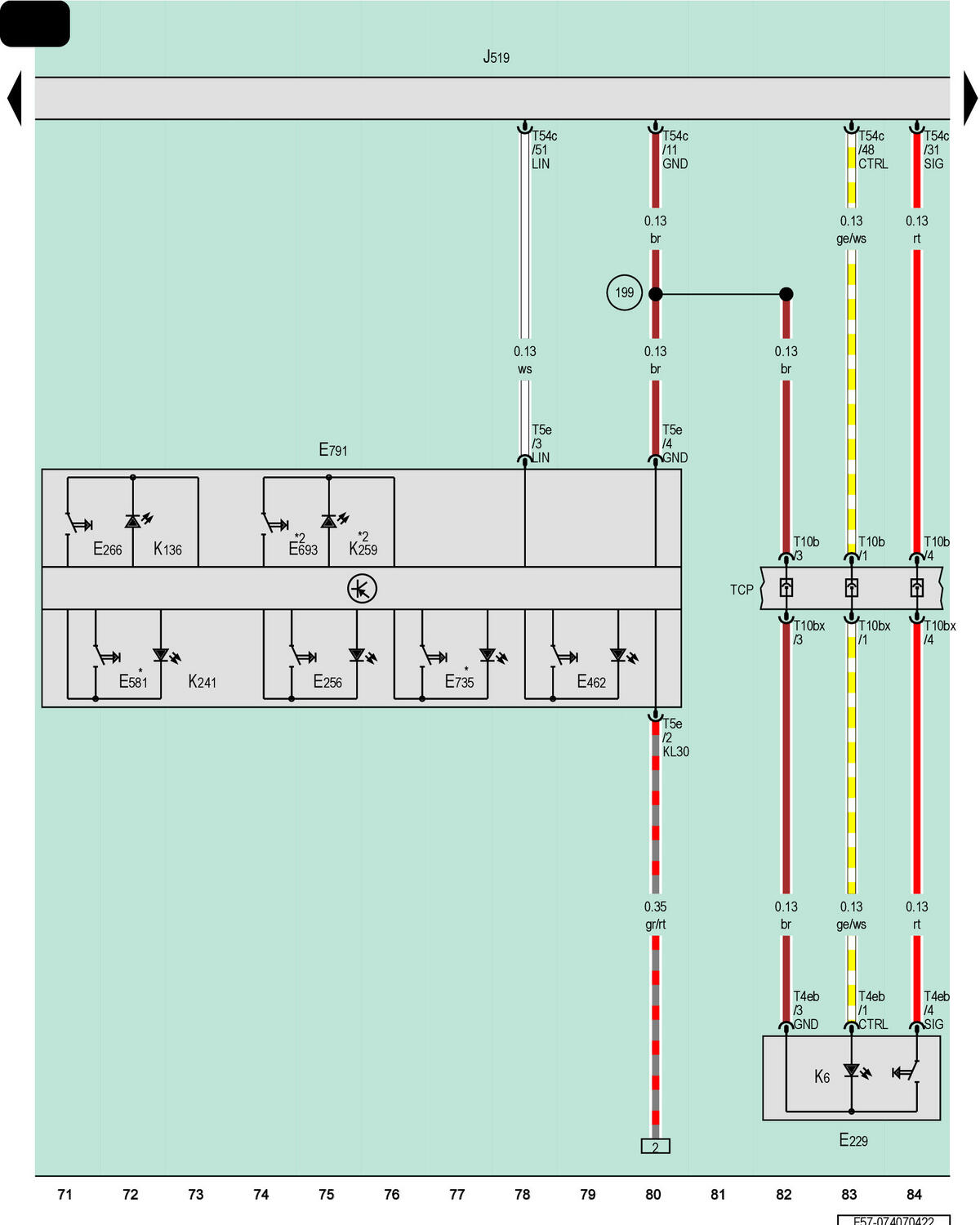

Emergency Flasher Button, Control Unit 1 For Driving And Convenience Functions, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

E229

Emergency Flasher Button

E256

ASR/ESP Button

E266

Parking Aid Button

E462

Front Display Open/Close Button

E581

Parallel Parking Assistance Button

E693

Start/Stop Mode Button

E735

Driving Profile Selection Button

E791

Control Unit 1 for Driving and Convenience Functions

J519

Vehicle Electrical System Control Module

K6

Emergency Flasher Indicator Lamp

K136

Parking Aid Indicator Lamp

K241

Parallel Parking Assistance Indicator Lamp

K259

Start/Stop Mode Indicator Lamp

T4eb

4-Pin Connector, Black

T5e

5-Pin Connector, Brown

T10b

10-Pin Connector, Black

T10bx

10-Pin Connector, Black

T54c

54-Pin Connector, Black

TCP

Coupling Point on Instrument Panel

199

Ground Connection 3 (in Instrument Panel Wiring Harness)

*

Depending on Equipment

*2

For Vehicles with Start/Stop System
