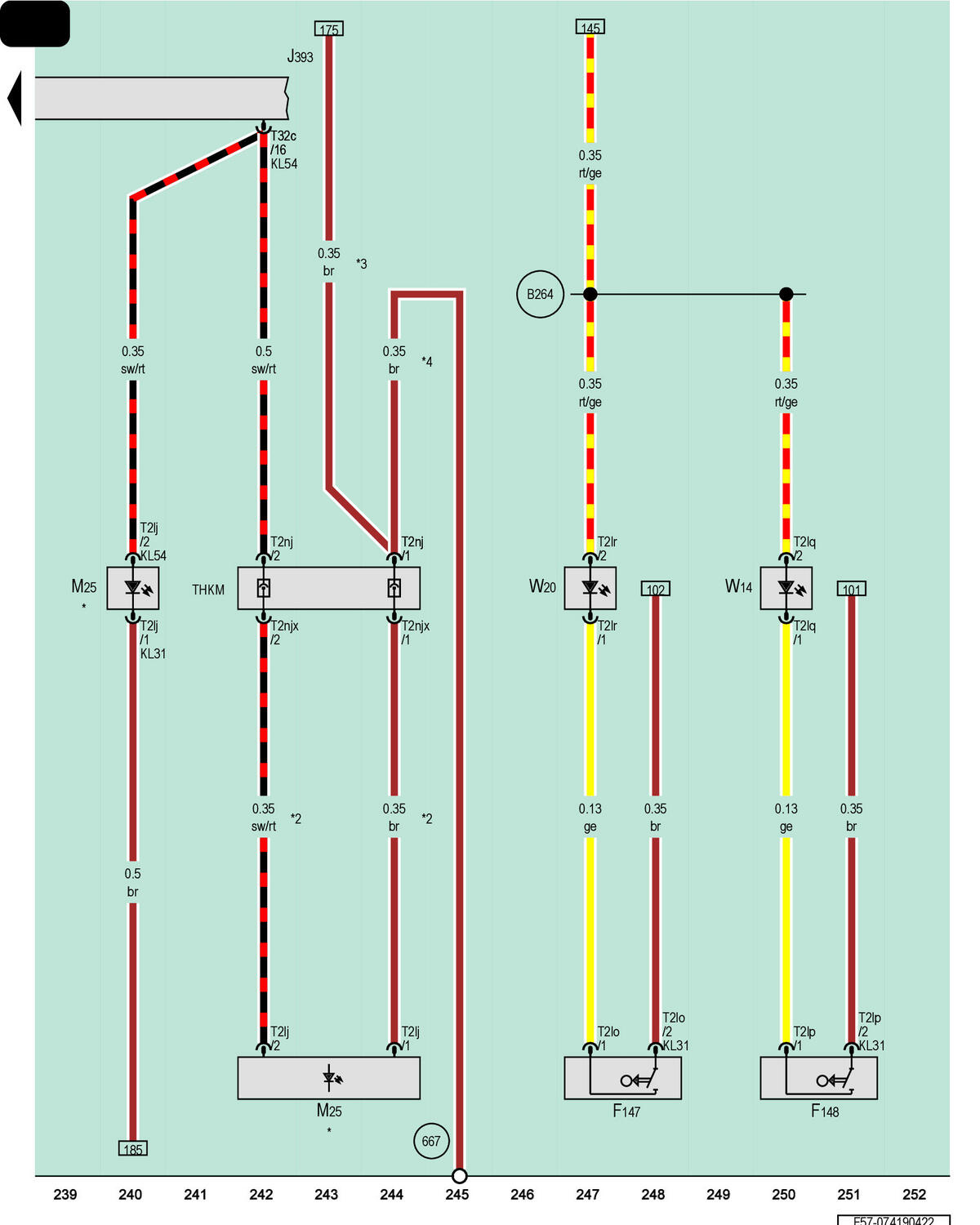

Driver Vanity Mirror Lamp Contact Switch, Front Passenger Vanity Mirror Lamp Contact Switch, Comfort System Central Control Module, High-Mounted Brake Lamp Bulb, Front Passenger Vanity Mirror Lamp, Driver Vanity Mirror Lamp

Courtesy of AUDI OF AMERICA, LLC

F147

Driver Vanity Mirror Lamp Contact Switch

F148

Front Passenger Vanity Mirror Lamp Contact Switch

J393

Comfort System Central Control Module

M25

High-Mounted Brake Lamp Bulb

T2lj

2-Pin Connector, Black

T2lo

2-Pin Connector, Black

T2lp

2-Pin Connector, Black

T2lq

2-Pin Connector, Black

T2lr

2-Pin Connector, Black

T2nj

2-Pin Connector, Black

T2njx

2-Pin Connector, Black

T32c

32-Pin Connector, Naturally Cloudy

THKM

Coupling Point on Rear Lid, Center, On the High-Mounted Brake Lamp

W14

Front Passenger Vanity Mirror Lamp

W20

Driver Vanity Mirror Lamp

667

Ground Connection on Roof, Left Rear

B264

Connection 1 (in Roof Wiring Harness)

Depending on Equipment

Different Wire Color Possible

For Convertible

Coupe
