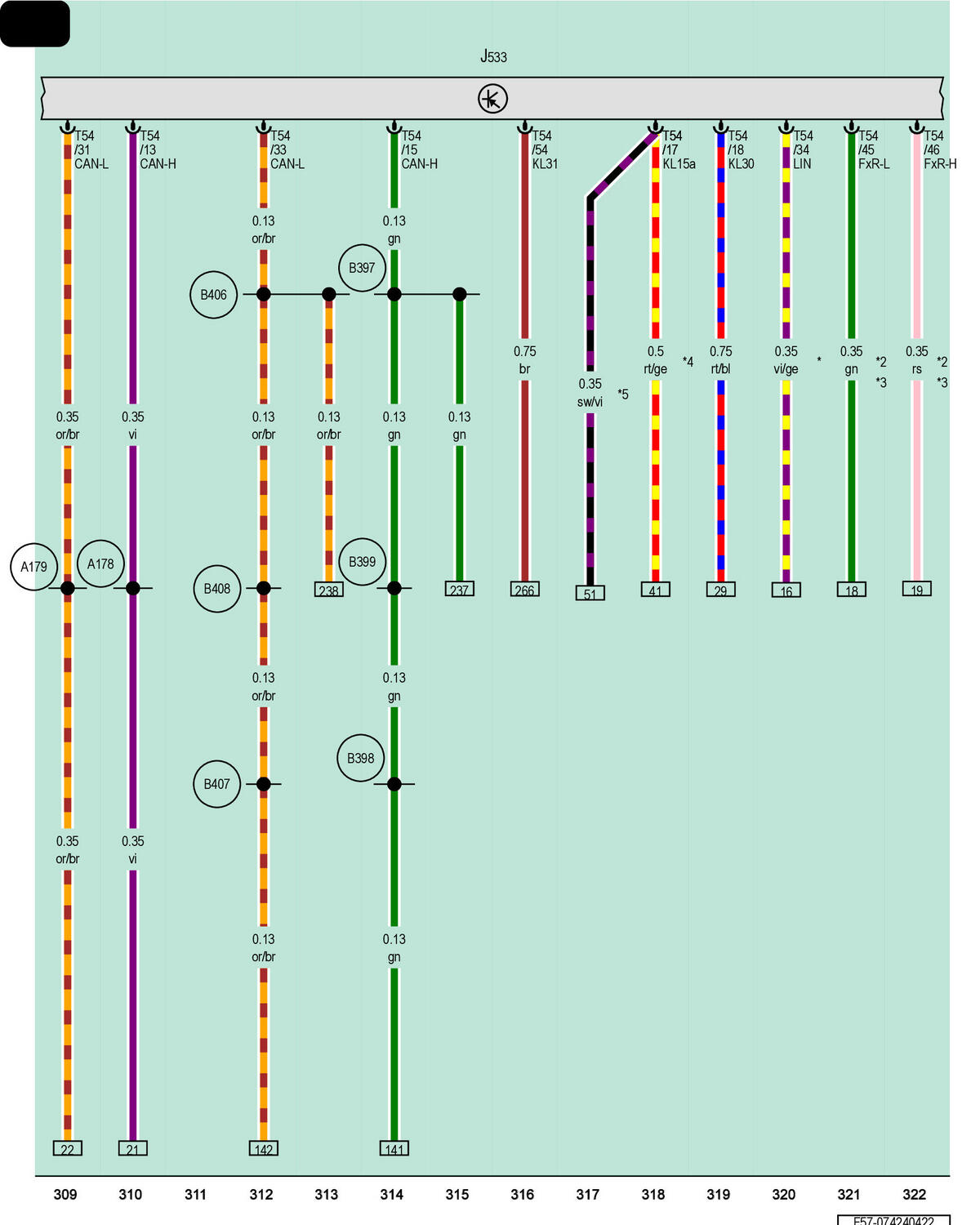

Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

T54

54-Pin Connector, Black

A178

Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)

A179

Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B399

Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B408

Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Diameter Depends on Equipment

*2

Data Bus Wire (Flexray Bus)

*3

Refer to Applicable Wiring Diagram for Data Bus Networking

*4

Omitted as a Running Change

*5

Running Change
