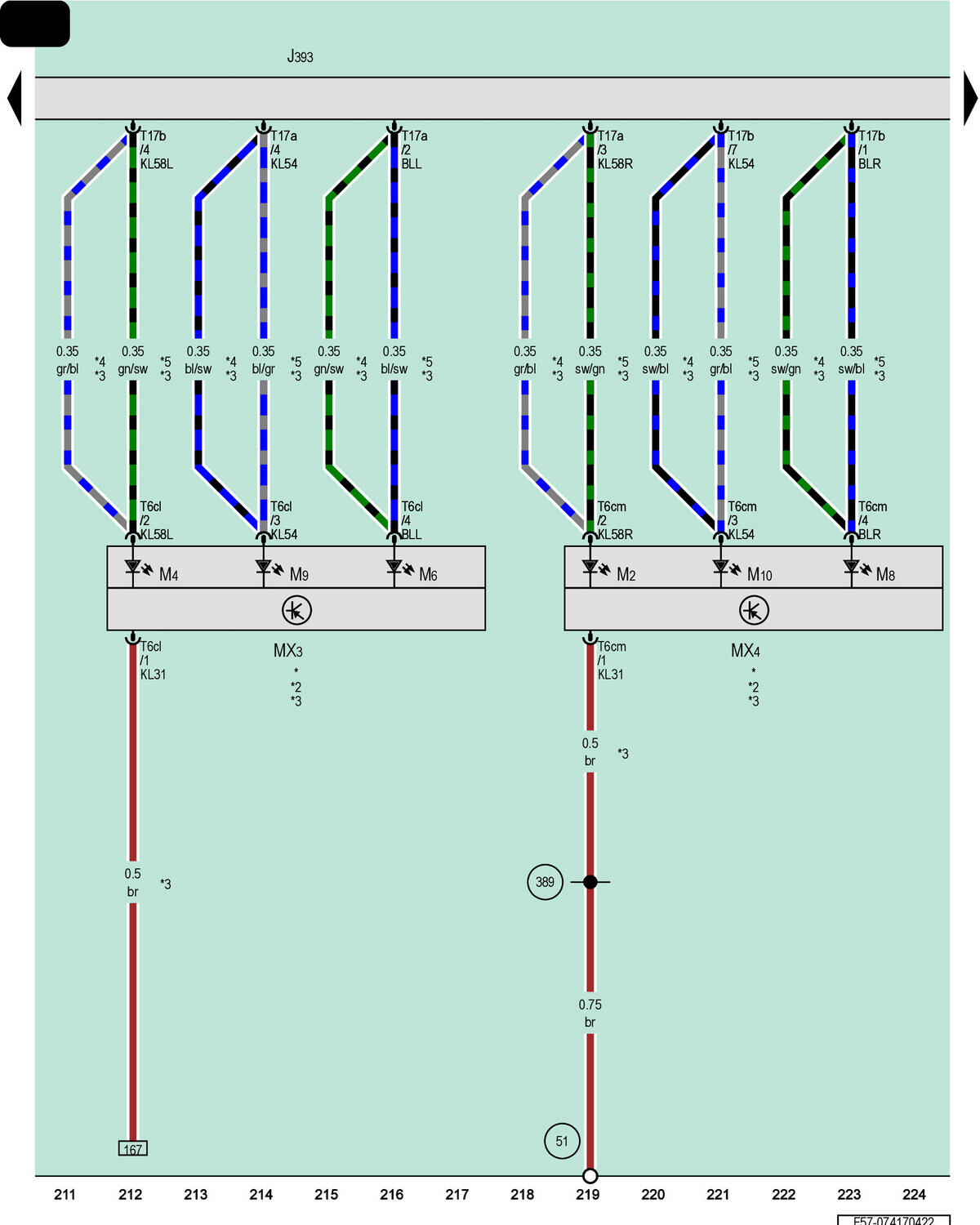

Comfort System Central Control Module, Left Tail Lamp, Right Tail Lamp
J393
Comfort System Central Control Module
M2
Right Tail Lamp Bulb
MX3
Left Tail Lamp
M4
Left Tail Lamp Bulb
MX4
Right Tail Lamp
M6
Left Rear Turn Signal Bulb
M8
Right Rear Turn Signal Bulb
M9
Left Brake Lamp Bulb
M10
Right Brake Lamp Bulb
T6cl
6-Pin Connector, Black
T6cm
6-Pin Connector, Black
T17a
17-Pin Connector, Brown
T17b
17-Pin Connector, Black
51
Ground Connection in Luggage Compartment, Right
389
Ground Connection 24 (in Main Wiring Harness)
*
Not for USA
*2
Refer to Applicable Tail Lamp Wiring Diagram
*3
Through September 2019
*4
For Convertible
*5
Coupe
