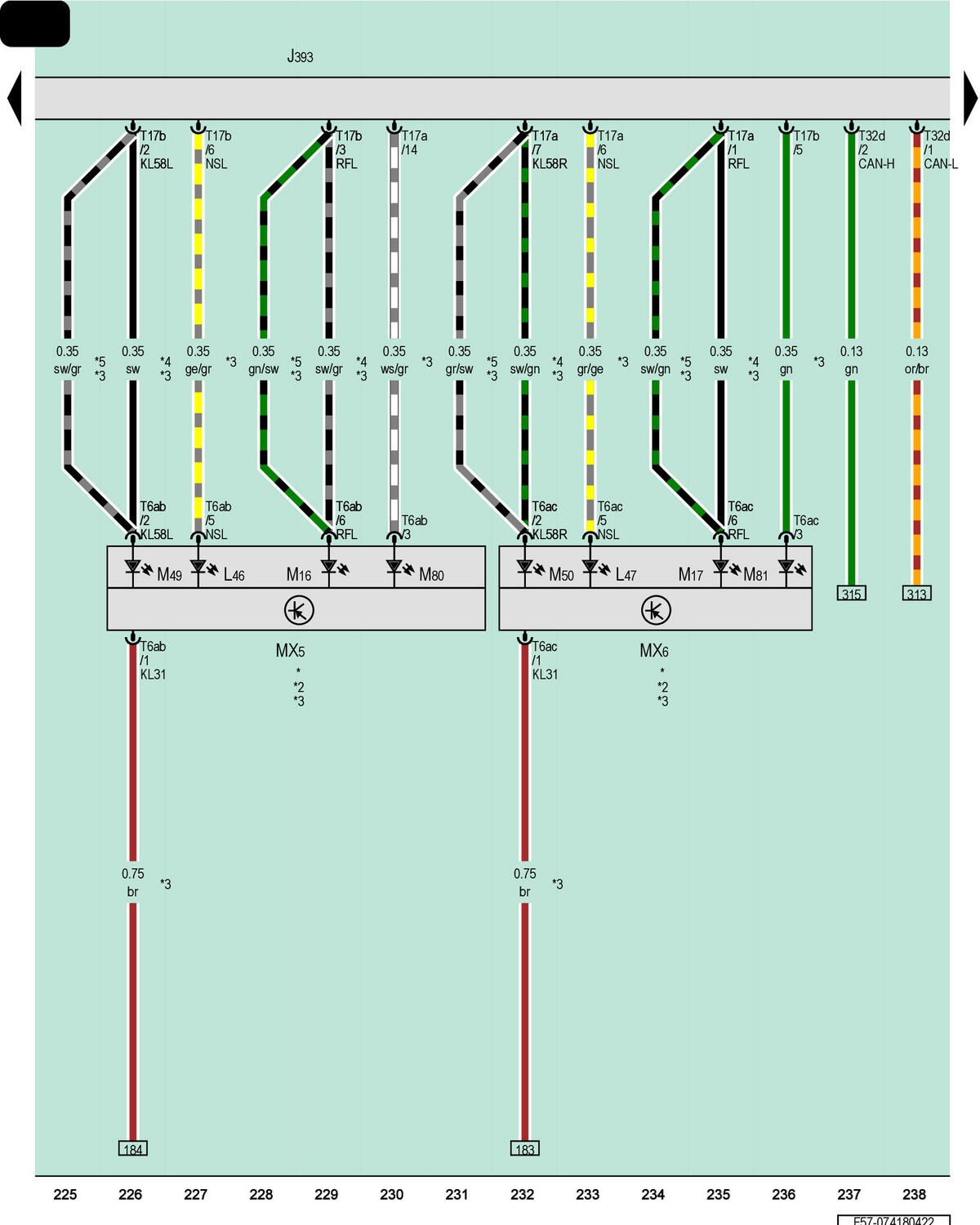

Comfort System Central Control Module, Left Tail Lamp 2, Right Tail Lamp 2
J393
Comfort System Central Control Module
L46
Left Rear Fog Lamp Bulb
L47
Right Rear Fog Lamp Bulb
MX5
Left Tail Lamp 2
MX6
Right Tail Lamp 2
M16
Left Back-Up Lamp Bulb
M17
Right Back-Up Lamp Bulb
M49
Left Tail Lamp Bulb 2
M50
Right Tail Lamp Bulb 2
M80
Left Rear Turn Signal Bulb 2
M81
Right Rear Turn Signal Bulb 2
T6ab
6-Pin Connector, Black
T6ac
6-Pin Connector, Black
T17a
17-Pin Connector, Brown
T17b
17-Pin Connector, Black
T32d
32-Pin Connector, Blue
*
Not for USA
*2
Refer to Applicable Tail Lamp Wiring Diagram
*3
Through September 2019
*4
Coupe
*5
For Convertible
