Overview - Cover And Cushion, Rear Seat Backrest, A5 Cabriolet

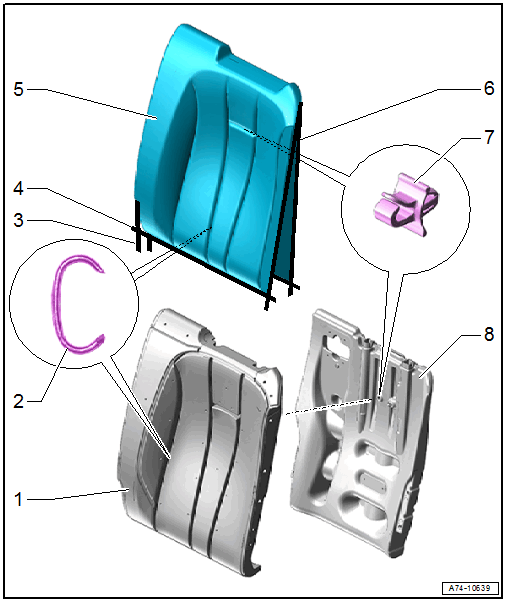

Fig 1: Exploded View Of Cover And Cushion, Rear Seat Backrest, A5 Cabriolet

Courtesy of AUDI

1. Cushion
   • Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST, A5 CABRIOLET .
   • Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .
2. Upholstery Clip
   • For securing the cover to the cushion
   • Replace
   • Install at the same location with Upholstery Clip Pliers:V.A.G 1634  .
3. Zipper
   • Sewn into cover
4. Zipper
   • Sewn into cover
   • Close with Closing Pliers:VAS 6138
5. Cover
   • Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST, A5 CABRIOLET .
   • Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .
   • Check that there are no folds after installing
6. Zipper
   • Sewn into cover
7. Clip
   • Quantity: 2
   • For attaching the cover to the backrest panel
8. Backrest Shell
