Overview - Seat Pan Cover And Cushion, Standard/Bucket Seat

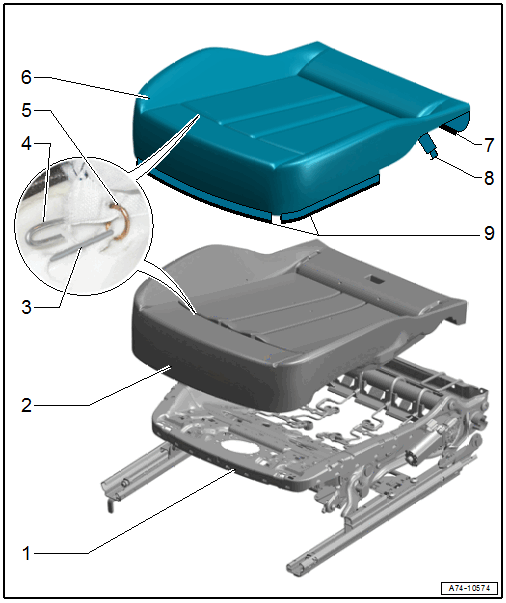

Fig 1: Exploded View Of Seat Pan Cover & Cushion, Standard Seat

Courtesy of AUDI

1. Seat Pan
2. Cushion
   • Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT/BUCKET SEAT .
   • Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
   • Versions with seat heating: attach a new heating element when replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT CUSHION .
3. Wire
   • Encapsulated in cushion
   • For securing the cover to the cushion
4. Contour Wire
   • Pushed into the cover mounting pocket
5. Upholstery Clip
   • For securing the cover to the cushion
   • Replace
   • Install at the same location with Upholstery Clip Pliers:V.A.G 1634  .
6. Cover
   • Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT/BUCKET SEAT .
   • Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
7. Molding
   • Sewn into cover
   • For engaging the cover on the seat pan
8. Hook or tensioning strap
   • Hook for engaging the cover on the seat pan
   • Tensioning strap for engaging the seat cover on the cushion
9. Molding
   • Sewn into cover
   • For engaging the cover on the seat pan
