Overview - Backrest Cover And Cushion, Bucket Seat

WARNING: This page is about a different variant/trim than selected.

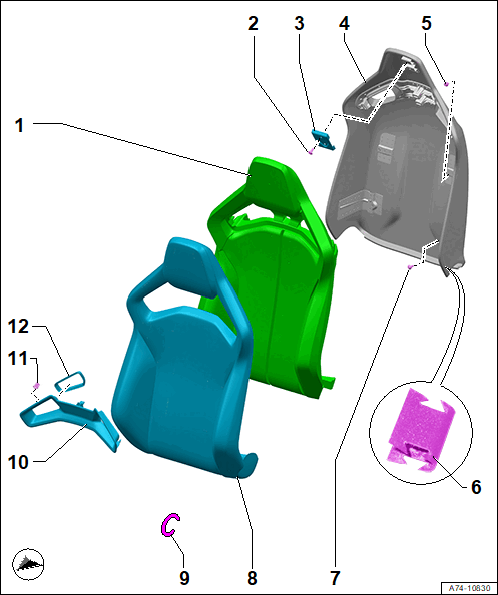

Fig 1: Exploded View Of Backrest Cover and Cushion, Bucket Seat

Courtesy of AUDI

Backrest Cushion
- Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, BUCKET SEAT .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 7.4 Nm
Bracket
Backrest Cover
- Removing and Installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, BUCKET SEAT .
Bolt
- Quantity: 2
- 33 Nm
Clip
- Re-insert at the same location.
Bolt
- Quantity: 2
- 33 Nm
Cover
- Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, BUCKET SEAT .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
Upholstery Clip
- For securing the cover to the cushion
- Replace after removing
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
Cap
- Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, BUCKET SEAT .
- Check for proper seating
Clip
- Included in the delivery package OVERVIEW - BACKREST COVER AND CUSHION, BUCKET SEAT
Frame
- Check for proper seating
