Backrest Cover And Cushion, Removing And Installing, Bucket Seat: Removing

Courtesy of AUDI

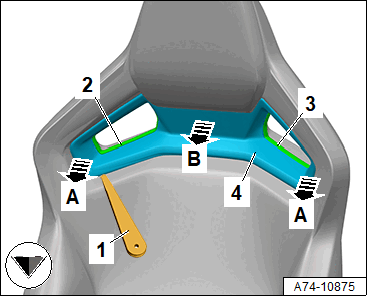

-- Unclip the outer cap -4- using the Trim Removal Wedge:3409  -item 1- -arrows A-.

-- Unclip the center cap -4- by hand -arrow B- and remove together with the frame -2 and 3-.

-- Remove the front backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING .

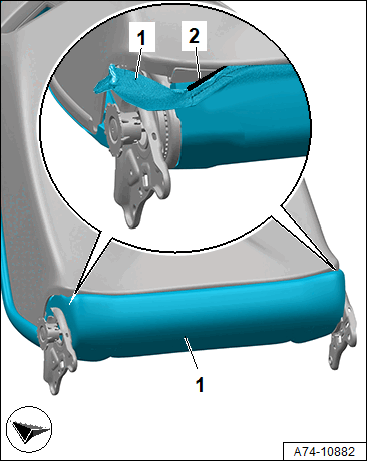

-- Disengage the side cover -1- from the backrest and disengage the molding -2- from the backrest cover.

Courtesy of AUDI

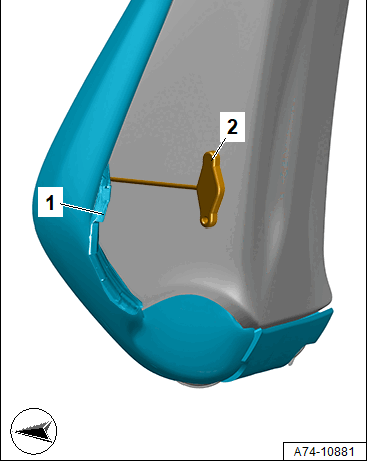

-- Disengage the molding -1- all around the backrest cover. If required, use the T-Handle Hook:3438  -item 2-.

Courtesy of AUDI

-- Fold the cover forward.

Courtesy of AUDI

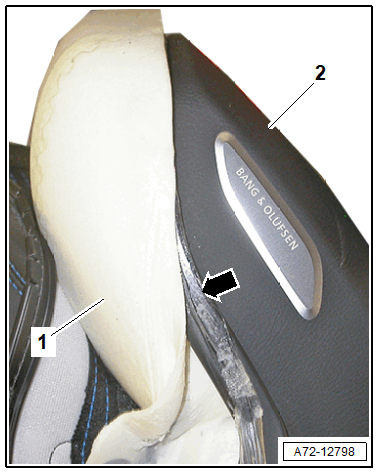

-- Loosen the backrest cushion -1- around on the outside out of the bonding -arrow- from the backrest cover -2- using a knife.
