Center Rear Seat Backrest Headrest Guide, Removing And Installing, 3-Person Rear Seat: Removing

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI

-- Remove the rear headrest. Refer to HEADREST, REMOVING AND INSTALLING .

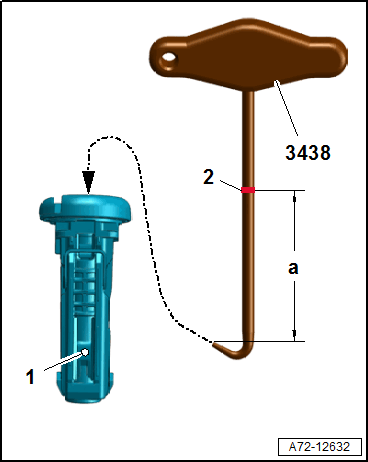

-- Using a waterproof felt-tip pen, make a marking -2- on the T-Handle Hook: 3438 at a distance of -a- = approximately 80 mm from the point of the hook.

-- Guide the T-Handle Hook :3438 from above into the headrest guide -arrow- as far as the marking and insert into the hole -1- for the tab.

-- Turn the T-Handle Hook:3438 90° -arrow A-.

Courtesy of AUDI

The hook must not slide out of the hole.

NOTE:

The rotational movement will cause the tab to bend away to the side and is no longer engaged.

-- Pull the headrest guide with the hook out of the backrest -arrow B-.
