Seat Side Trim On Side Sill Side, Removing And Installing, Bucket Seat: Removing
WARNING: This page is about a different variant/trim than selected.
-- Move the front seat into its highest position.
-- Remove the backrest adjustment hand wheel. Refer to BACKREST ADJUSTER, REMOVING AND INSTALLING .
-- Remove the seat height adjustment handle. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING, BUCKET SEAT .

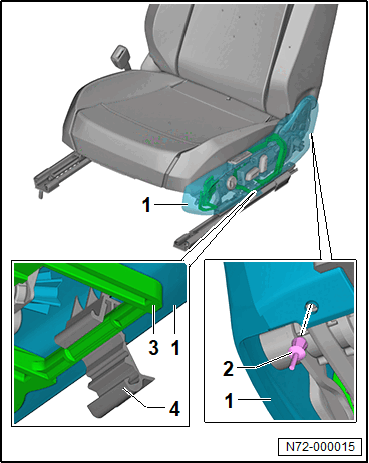

-- Remove the expanding rivet -2-.
-- Open the locking mechanism -4-.

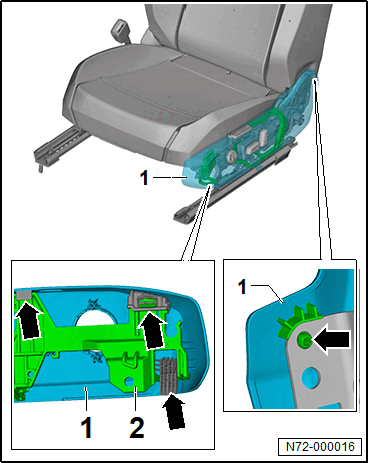

-- Loosen the catches -arrows-.
-- Remove the seat frame trim panel -1- from the seat frame trim panel bracket -2-.
-- If necessary, remove the bolts -2-, disengage the bracket -1- in -direction of the arrow- and remove from the front seat -3-.
