Overview - Telephone, AUDI Phone Box (9ZE), Before Product Improvement

The Information Electronics Control Module 1 -J794- is installed and is used for hands-free calling.

The connection to the Cellular Telephone -R54- takes place via Bluetooth. The Bluetooth Antenna -R152- is integrated in the Information Electronics Control Module 1 -J794-.

The telephone is operated either by the Infotainment system MMI or by the Cellular Telephone -R54-.

The microphones for the Microphone Unit In Front Roof Module -R164- are integrated in the Front Roof Module -WX3-. One microphone (Left Front Microphone -R140-) is connected directly to the Information Electronics Control Module 1 -J794-. For IW1/IW3 with the Data Bus on Board Diagnostic Interface -J533-.

The Telephone Baseplate -R126- (Audi phone box) is installed in the center console with a pairing antenna. The Telephone Baseplate -R126- may also be equipped with a module for wireless charging of the corresponding Cellular Telephone -R54-.

The Telephone Antenna -R65- is connected through the Cellular Telephone Amplifier -R86- to the Telephone Baseplate -R126-.

An LTE module can also be installed in the Information Electronics Control Module 1 -J794- for an Internet connection (Audi connect, EL3).

9ze - Audi Phone Box

Courtesy of AUDI OF AMERICA, LLC

1. Telephone Antenna -R65- in the Roof Antenna -R216-, Convertible Top Compartment Cover
2. Front Information Display Control Head -J685-, display in center of the instrument panel
3. Multimedia System Control Head -E380- in the center console
4. CAN Bus
5. Information Electronics Control Module 1 -J794- behind the glove compartment
6. Telephone Baseplate -R126- with Cellular Telephone -R54-
7. Cellular Telephone Amplifier -R86- in the luggage compartment on the right rear side
8. Right Bumper Antenna
9. Left Bumper Antenna
10. MOST Bus
11. Digital Sound System Control Module -J525- in the luggage compartment on the left rear side
12. Microphone Unit in Front Roof Module -R164- in the Front Roof Module -WX3-

Antennas

9ZE - Audi phone box without Audi connect EL0:

• The Telephone Antenna -R65- is installed in the Roof Antenna -R216- /in the center right convertible top compartment cover.
• No LTE antennas (LTE Antenna 1 -R297- /LTE Antenna 2 -R306-) are installed

9ZE - Audi phone box with Audi connect EL3:

• The Telephone Antenna -R65- is installed behind the rear bumper cover on the right side.
• The LTE Antenna 1 -R297- is installed in the Roof Antenna -R216- /under the rear bumper cover on the left side/in the convertible top compartment cover in the center to the right.
• The LTE Antenna 2 -R306- is installed under the left side of the rear bumper cover/under the center of the rear shelf (Coupe) / in the left rear seat belt guide (Sportback) / in the center of the instrument panel.

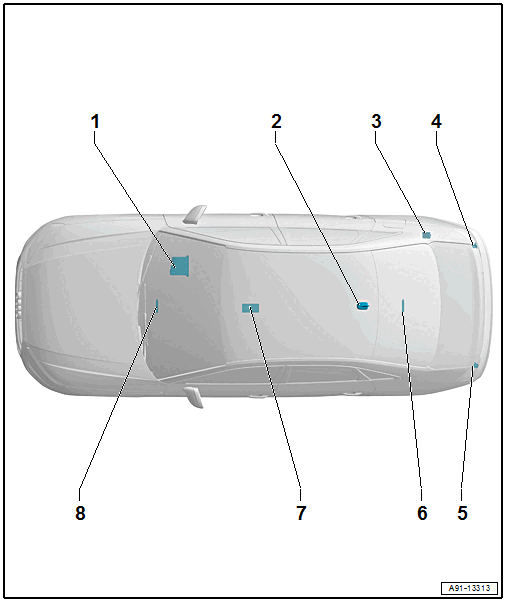

Overview Antennas

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
2. Telephone Antenna -R65-
   • Only with EL0 and IV0/IW0/IW3
   • Coupe/Sportback: in the Roof Antenna -R216-
   • Cabriolet: in the center right of the convertible top compartment cover
3. Cellular Telephone Amplifier -R86-
4. Right Bumper Antenna
   • Telephone Antenna -R65-, only for EL3 and IV0/IW0/IW1/IW3/IV1 through IV8
5. Left Bumper Antenna
   • LTE Antenna 1 -R297-, only for IW1/IV1 through IV8
   • LTE Antenna 2 -R306-, only for IV0/IW0/IW3
6. LTE Antenna 2 -R306-
   • Only for IV0 and IW1
   • Coupe: under the center of the rear shelf
   • Sportback: in the left rear seat belt guide
7. Telephone Baseplate -R126-
8. LTE Antenna 2 -R306-
   • Only for IV1 through IV8

Antenna, removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .
