Component Location Overview - Telephone System, Coupe, From Product Improvement
WARNING: This page is about a different variant/trim than selected.

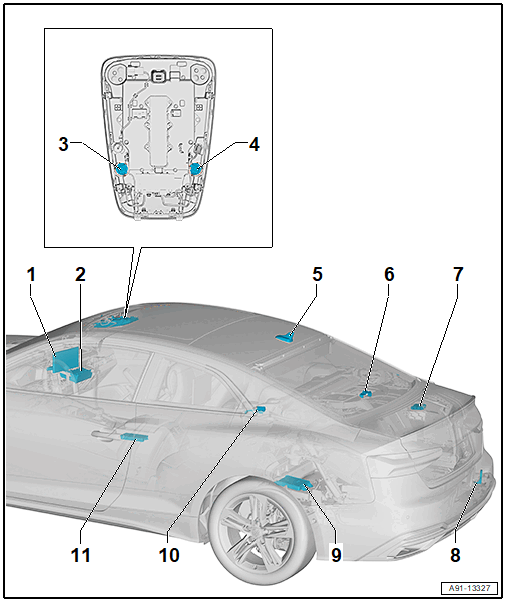

- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Bluetooth Antenna -R152-
- In the Roof Antenna -R216-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Wireless Data Transmission Antenna -R336-
- Removing and Installing. Refer to Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING, COUPE .
- Cellular Telephone Amplifier -R86-
- Behind the right luggage compartment side trim panel
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, COUPE/SPORTBACK .
- Bracket nut tightening specification: 3 Nm
- LTE Antenna 3 -R330-
- Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, COUPE/SPORTBACK/CABRIOLET, FROM PRODUCT IMPROVEMENT .
- Control Module for Emergency Call Module and Communication Unit -J949-
- In the left front side of the luggage compartment
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, COUPE/SPORTBACK .
- Wireless Data Transmission Antenna 2 -R366-
- Removing and Installing. Refer to Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING, COUPE .
- Mobile Device Charger 1 -J1146-
- In the Multimedia Device Storage Compartment in Center Console
- Removing and Installing. Refer to TELEPHONE BASEPLATE, REMOVING AND INSTALLING .
