Component Location Overview - Telephone System, Cabriolet, From Product Improvement
WARNING: This page is about a different variant/trim than selected.

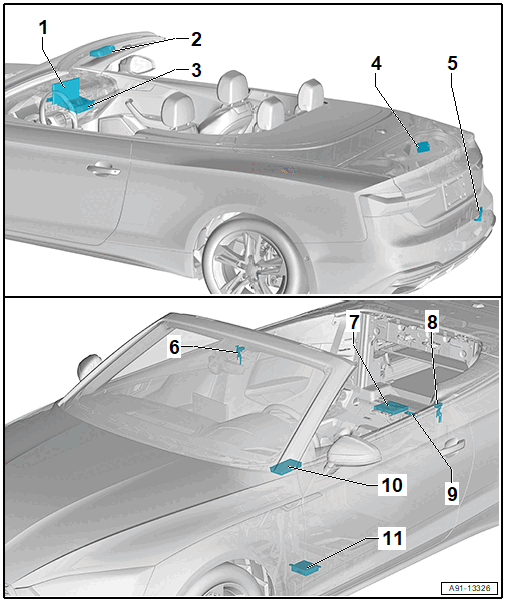

- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Telephone Microphone -R38-
- In the Microphone Unit in Front Roof Module -R164-
- Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING, CABRIOLET .
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Cellular Telephone Amplifier -R86-
- Behind the right luggage compartment side trim panel
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, CABRIOLET .
- LTE Antenna 3 -R330-
- Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, COUPE/SPORTBACK/CABRIOLET, FROM PRODUCT IMPROVEMENT .
- Wireless Data Transmission Antenna -R336-
- At the front right railing
- Removing and Installing. Refer to Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING, CABRIOLET .
- Control Module for Emergency Call Module and Communication Unit -J949-
- Behind the right rear seat backrest
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, CABRIOLET .
- Bluetooth Antenna -R152-
- At the front left railing
- Removing and Installing. Refer to Bluetooth Antenna -R152-, REMOVING AND INSTALLING, CABRIOLET .
- Wireless Data Transmission Antenna 2 -R366-
- Behind the right rear seat backrest at the bracket Control Module for Emergency Call Module and Communication Unit -J949-
- Removing and Installing. Refer to Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING, CABRIOLET .
- Mobile Device Charger 1 -J1146-
- In the Multimedia Device Storage Compartment in Center Console
- Removing and Installing. Refer to TELEPHONE BASEPLATE, REMOVING AND INSTALLING .
- Seat Belt Microphone Control Module -J886-
- Under the left front seat
- Removing and Installing. Refer to SEAT BELT MICROPHONE CONTROL MODULE, REMOVING AND INSTALLING .
