Overview - TV System, From Product Improvement

WARNING: This page is about a different variant/trim than selected.

The TV system (QV1) is part of the MMI Infotainment system.

TV Tuner -R78- is connected via the MOST-Bus to the other components of the Infotainment system. It is operated using the Front Information Display Control Head -J685-.

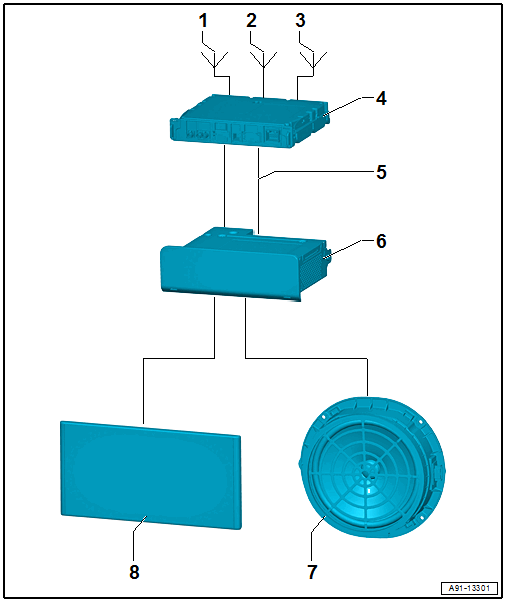

GWWA91-13301Courtesy of AUDI OF AMERICA, LLC
  1. TV Antenna 1 -R55- via Antenna Amplifier -R24- (Coupe/Sportback) / TV Antenna Amplifier 1 -R82- (Cabriolet)
  2. TV Antenna 2 -R56- via TV Antenna Amplifier 1 -R82- (Coupe/Sportback)/TV Antenna Amplifier 2 -R83- (Cabriolet)
  3. TV Antenna 3 -R57- via TV Antenna Amplifier 2 -R83- (Sedan)/TV Antenna Amplifier 3 -R84- (Cabriolet)
  4. TV Tuner -R78- in luggage compartment on rear right side
  5. MOST Bus
  6. Information Electronics Control Module 1 -J794- behind the glove compartment
  7. Sound Systems
  8. Front Information Display Control Head -J685-, display in center of the instrument panel
