Component Location Overview - TV System, From Product Improvement
WARNING: This page is about a different variant/trim than selected.
NOTE:
The component locations are shown on a Sportback. The component locations for the other vehicle models are the same.

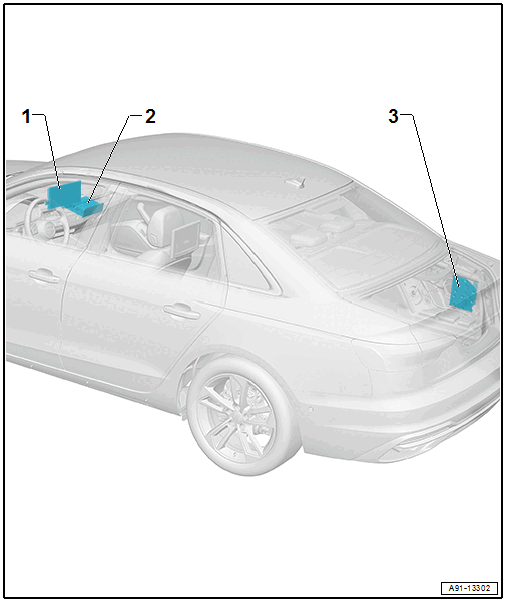

- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- TV Tuner -R78-
- Behind the right luggage compartment side trim panel
- Refer to the appropriate Wiring Diagram
- Removing and Installing, Coupe/Sportback. Refer to TV TUNER, REMOVING AND INSTALLING, COUPE/SPORTBACK .
- Removing and Installing, Convertible. Refer to TV TUNER, REMOVING AND INSTALLING, CABRIOLET .
- Bracket tightening specification: 3 Nm
