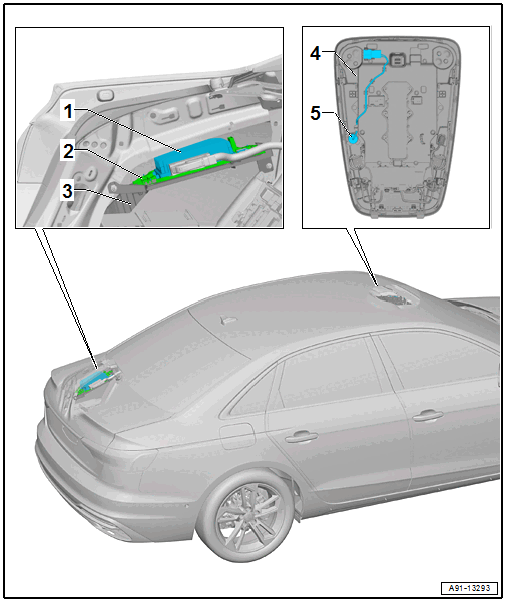

Component Location Overview - Sound System, Microphones, Amplifier, Coupe/SPORTBACK, From Product Improvement
WARNING: This page is about a different variant/trim than selected.
- Digital Sound System Control Module -J525-, 9VS
- In the luggage compartment on the left rear side
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to CONTROL MODULE/AMPLIFIER FOR DIGITAL SOUND SYSTEM, REMOVING AND INSTALLING, COUPE/SPORTBACK, FROM PRODUCT IMPROVEMENT .
- Adapter Plate
- Bolt tightening specification: 6 Nm
- Bracket
- Nut tightening specification: 3 Nm
- Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Interior Microphone -R74-, 9VS
- Removing and Installing. Refer to Interior Microphone -R74-, REMOVING AND INSTALLING, COUPE/SPORTBACK .
