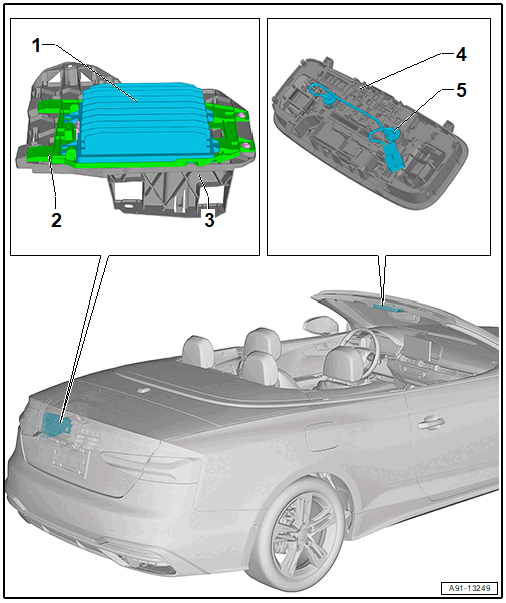

Component Location Overview - Sound System, Microphones And Amplifiers, Cabriolet, From Product Improvement

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

Digital Sound System Control Module -J525-, 9VS
- In the luggage compartment on the left rear side
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to CONTROL MODULE/AMPLIFIER FOR DIGITAL SOUND SYSTEM, REMOVING AND INSTALLING, CABRIOLET, FROM PRODUCT IMPROVEMENT .
Adapter Plate
- Bolt tightening specification: 6 Nm
Bracket
- Nut tightening specification: 3 Nm
Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Interior Microphone -R74-, 9VS
- In the Microphone Unit in Front Roof Module -R164-
- Microphone Unit in Front Roof Module -R164-, Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING, CABRIOLET .
