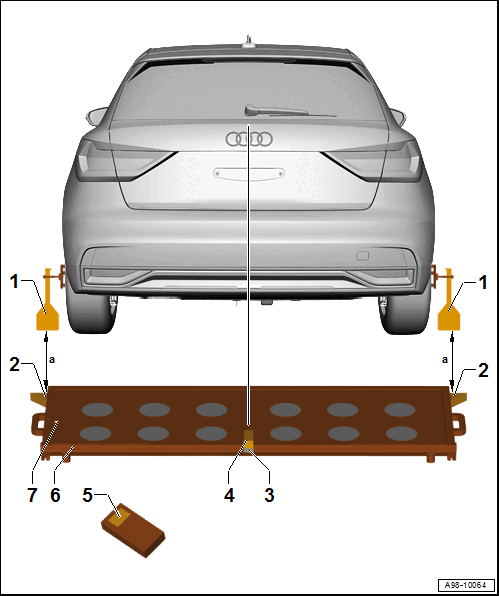

Installed Overview
The vehicle in the illustration is only a basic outline.
- Calibration Tool - Wheel Center Mountings:VAS 6350/1
- With wheel bolt adapter and measuring paddle
- Right/Left Catch Bracket
- To mount the Spacing Laser:VAS 6350/2A for the distance measurement
- Plastic Foot
- Quantity: 3
- Adjustable for adjusting the horizontal position of the Calibration Tool:VAS 6350A
- Calibration Tool - Linear Laser:VAS 6350/3A
- With "laser protective eyewear"
- On the Calibration Tool:VAS 6350A
- Refer to Calibration Tool - Line LaserVAS 6350/3A Owner's Manual for handling.
- Calibration Tool - Spacing Laser:VAS 6350/2A
- For distance measurement
- Refer to the Calibration Tool - Spacing LaserVAS 6350/2A Operating Instructions for handling.
- Calibration Tool:VAS 6350A
- Between the catch bracket on the calibration board and the Calibration Tool - Wheel Center Mounting:VAS 6350/1A - dimension -a- : 1.47 m to 1.90 m (4.8 feet to 6.2 feet)
- Level
- On the Calibration Tool:VAS 6350A
- For checking the horizontal position
Calibration Board Orientation
-- Position the calibration platform behind the vehicle at a distance of 1.47 m to 1.90 m (4.8 feet to 6.2 feet) to the rear wheels, see -dimension A- in the overview illustration. Refer to Installed Overview .
-- Bring the Calibration Unit:VAS 6350A into a horizontal position.
-- Twist the plastic feet under the calibration board so that the air bubble in the level is located exactly in the center of the indicator -arrow-.
-- Wear "laser protective eyewear".

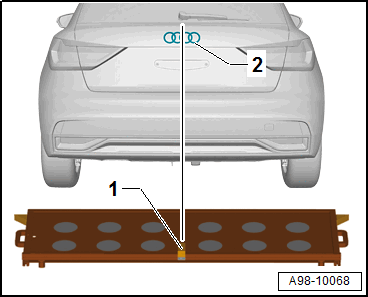

-- Turn on the Calibration Tool - Linear Laser:VAS 6350/3A -1- on the Calibration Tool: VAS 6350A .
-- Align the Calibration Tool:VAS 6350A so that the Calibration Tool - Linear Laser:VAS 6350/3A -1- strikes the center of the emblem -2- on the rear lid.
-- Check that the Audi rings are centered on the rear. Correct the laser beam accordingly.
Continue calibrating the Rearview Camera -R189-. Refer to Rearview Camera -R189-, CALIBRATING .
