Telematics Emergency Battery -A16- REMOVING AND INSTALLING, IV1 TO IV9 OR JE0 TO JE4: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the Emergency Call Control Module and Communication Unit -J949-. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .

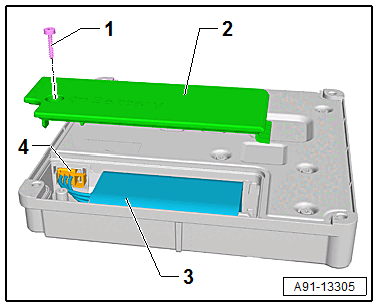

-- Remove the bolt -1- on the battery cover.
-- Remove the batter cover -2- from the Control Module for Emergency Call Module and Communication Unit -J949-.
-- Release and disconnect the connector -4-.
-- Remove the Telematics Emergency Battery -A16- -3- from the Control Module for Emergency Call Module and Communication Unit -J949-.
