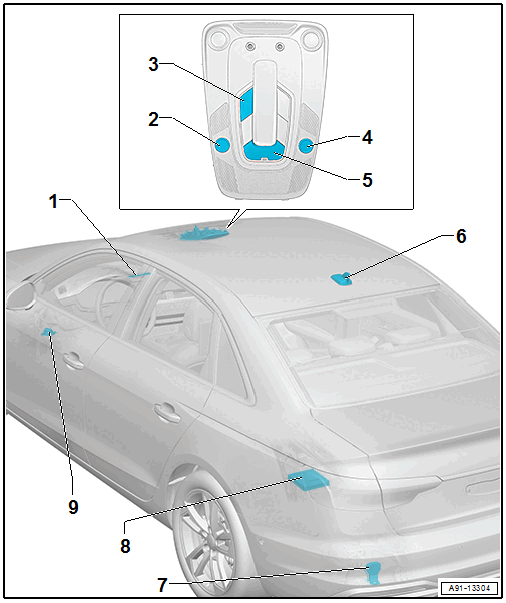

Component Location Overview - Mobile Online Services, From Product Improvement, Coupe/SPORTBACK
WARNING: This page is about a different variant/trim than selected.
- Emergency Call Module Antenna 3 -R323-
- Removing and installing. Refer to Emergency Call Module Antenna 3 -R323-, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- In the Front Roof Module -WX3-
- Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Roadside Assistance Button -E275-
- In the Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- In the Front Roof Module -WX3-
- Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Emergency Call Button -E276-
- In the Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- GPS Antenna -R50- and Emergency Call Module Antenna 2 -R322-
- In the Roof Antenna -R216-
- Removing and installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Emergency Call Module Antenna -R263-
- Removing and installing. Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, COUPE/SPORTBACK, CABRIOLET, FROM PRODUCT IMPROVEMENT .
- Control Module for Emergency Call Module and Communication Unit -J949-
- Removing and installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, COUPE/SPORTBACK .
- Telematics Emergency Battery -A16-, Checking. Refer to CONNECTIVITY BOX, CHECKING EMERGENCY BATTERY .
- Telematics Emergency Battery -A16-, Removing and Installing. Refer to Telematics Emergency Battery -A16- REMOVING AND INSTALLING, IV1 TO IV9 OR JE0 TO JE4 .
- Emergency Call Module Speaker -R335-
- Removing and installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
