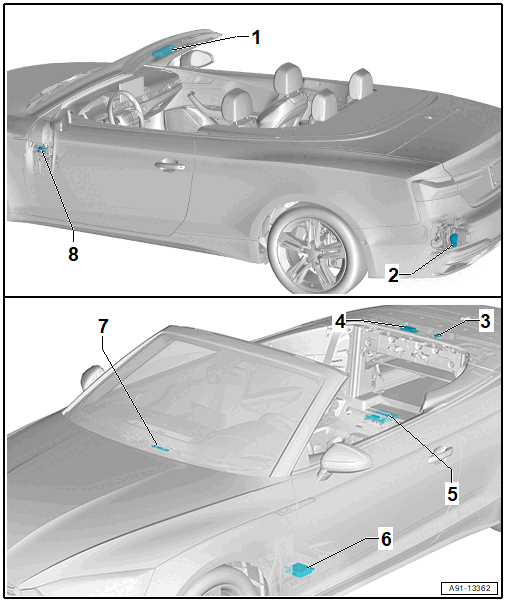

Component Location Overview - Mobile Online Services, From Product Improvement, Cabriolet

Courtesy of AUDI OF AMERICA, LLC

1. Front Roof Module -WX3-
   • With Roadside Assistance Button -E275-, Emergency Call Button - E276- and the Telephone Microphone -R38-
   • Telephone Microphone -R38-, Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING, CABRIOLET .
   • Removing and installing the Front Roof Module -WX3-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
2. Emergency Call Module Antenna -R263-
   • Removing and installing. Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, COUPE/SPORTBACK, CABRIOLET, FROM PRODUCT IMPROVEMENT .
3. GPS Antenna -R50-
   • Removing and installing. Refer to GPS ANTENNA, REMOVING AND INSTALLING, CABRIOLET .
4. Emergency Call Module Antenna 2 -R322-
   • Removing and installing. Refer to Emergency Call Module Antenna 2 -R322-, REMOVING AND INSTALLING, CABRIOLET, FROM PRODUCT IMPROVEMENT .
5. Control Module for Emergency Call Module and Communication Unit -J949-
   • Removing and installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, CABRIOLET .
   • Telematics Emergency Battery -A16-, Checking. Refer to CONNECTIVITY BOX, CHECKING EMERGENCY BATTERY .
   • Telematics Emergency Battery -A16-, Removing and Installing. Refer to Telematics Emergency Battery -A16- REMOVING AND INSTALLING, IV1 TO IV9 OR JE0 TO JE4 .
6. Seat Belt Microphone Control Module -J886-
   • Under the left front seat
   • Removing and installing. Refer to SEAT BELT MICROPHONE CONTROL MODULE, REMOVING AND INSTALLING .
7. Emergency Call Module Antenna 3 -R323-
   • Removing and installing. Refer to Emergency Call Module Antenna 3 -R323-, REMOVING AND INSTALLING .
8. Emergency Call Module Speaker -R335-
   • Removing and installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
