Component Location Overview - Navigation System, From Product Improvement, Coupe/SPORTBACK

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

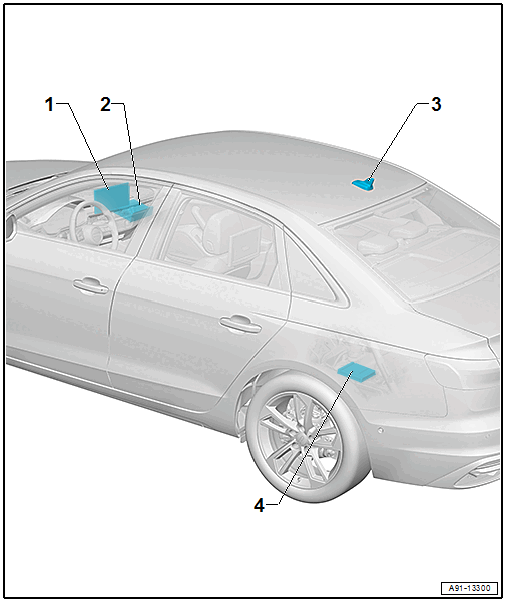

Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
GPS Antenna -R50-
- In the Roof Antenna -R216-
- Removing and Installing. Refer to GPS ANTENNA, REMOVING AND INSTALLING .
Control Module for Emergency Call Module and Communication Unit -J949-
- In the left front side of the luggage compartment
- Refer to the appropriate Wiring Diagram
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, COUPE/SPORTBACK .
