Infotainment System Display, Removing And Installing, From Product Improvement: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

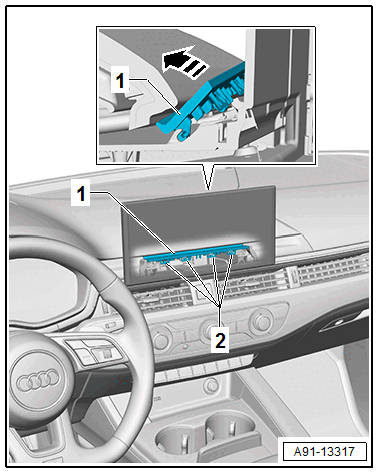

-- Carefully release the retainers -2- on the center display trim -1- from the Infotainment system display.
-- Pivot the center display trim -1- out from the gap between the instrument panel and the Infotainment system display in direction of -arrow-.

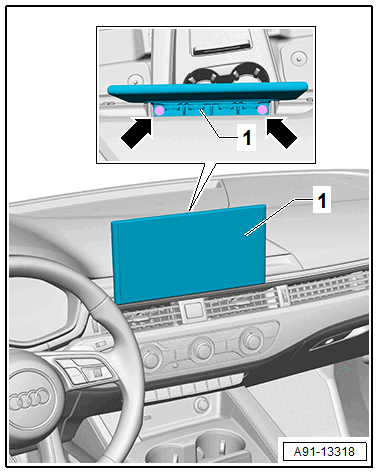

-- Remove the screws -arrows- from the back of the Infotainment system display -1-.
-- Pull the Infotainment system display -1- out of the instrument panel until the connector is accessible.
-- Release and disconnect the connector from the Infotainment system display -1-.
