USB Connection 1 -U41-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the front center console storage compartment. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

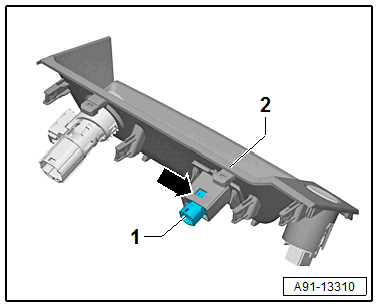

-- Release the retaining tab -arrow- at the top and the bottom of the USB Connection 1 -U41- -1-.
-- At the same time, slide the USB Connection 1 -U41- -1- out of the front center console storage compartment -2-.
