Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING, SPORTBACK: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the left rear seat belt guide. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .

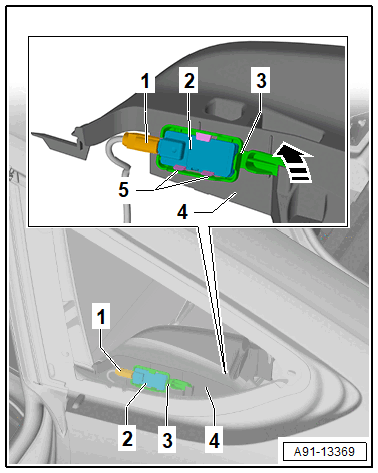

-- Release the retaining tabs -5- on the holder -3-.
-- Pivot the Wireless Data Transmission Antenna -R336- -2- out off the bracket -3-.
-- Release and disconnect the connector -1-.
-- If necessary, pivot the holder -3- out of the tabs on the seat belt guide -4- in direction of -arrow-.
