Remove Wireless Data Transmission Antenna - R336
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

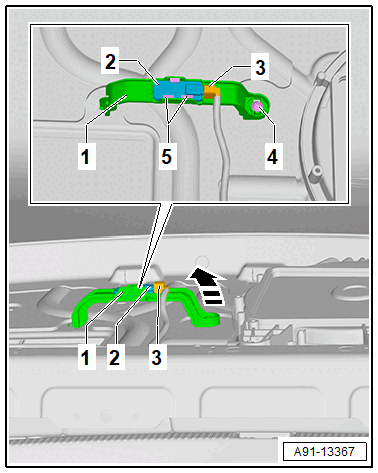

-- Release the retaining tabs -5- on the holder -1-.
-- Pivot the Wireless Data Transmission Antenna -R336- -2- out off the bracket -1-.
-- Release and disconnect the connector -3-.
-- If necessary, then remove the bolt -4- and the bracket off the body -1- in direction of -arrow-.
