Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING, CABRIOLET: Remove

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the right side trim panel. Refer to OVERVIEW - SIDE TRIM PANEL .

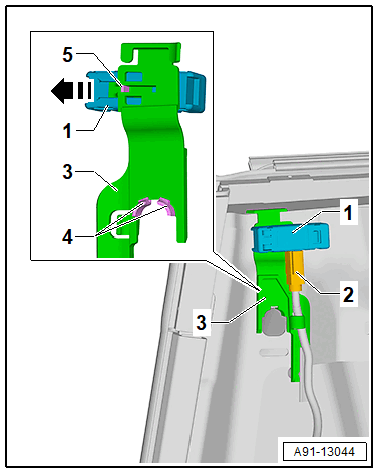

-- Release and disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the wiring harness from the bracket -3-.

-- Release the retaining tabs -4- on the holder -3-.

-- Remove the bracket -3- with the Wireless Data Transmission Antenna -R336- -1- upwards off the body.

-- Release the retaining tab -5- at the Wireless Data Transmission Antenna -R336- -1-.

-- Slide off the Wireless Data Transmission Antenna -R336- -1- from the bracket -3- -arrow-.

Special tools and workshop equipment required

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the right rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

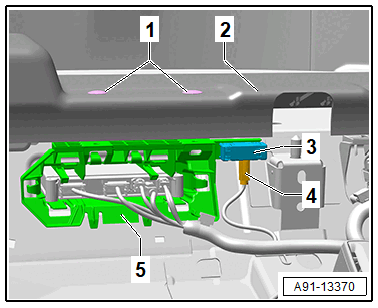

-- Remove the expanding clips -1- using the Pliers:T40172C .

Courtesy of AUDI OF AMERICA, LLC

-- Lift up the front luggage compartment floor -2- in the area of the Wireless Data Transmission Antenna 2 -R366- -3-.

-- Pry out the Wireless Data Transmission Antenna 2 -R366- -3- from the bracket -5-.

-- Release and disconnect the connector -4-.

Installing the Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 - R366-

Install in reverse order of removal.
