Emergency Call Module Antenna 2 -R322-, REMOVING AND INSTALLING, COUPE/SPORTBACK, EXCLUDING RUSSIA, THROUGH MY 2018 AND FROM MY 2019 THROUGH PRODUCT IMPROVEMENT, WITHOUT CONNECT PLUS (IV0): Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

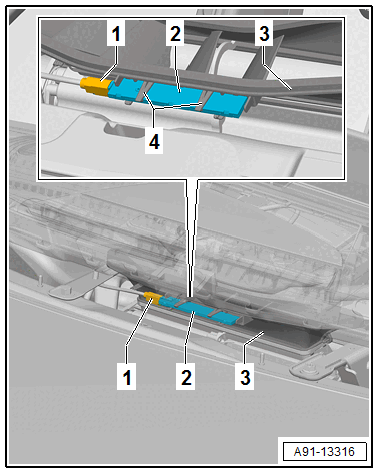

-- Release the retaining tabs -4- from the air duct/defrost intermediate piece -3-.
-- Remove the Emergency Call Module Antenna 2 -R322- -2- forward from the mount on the air duct/defrost intermediate piece -3-.
-- Release and disconnect the connector -1-.
