Component Location Overview - Antenna Systems, Coupe, From Product Improvement
WARNING: This page is about a different variant/trim than selected.

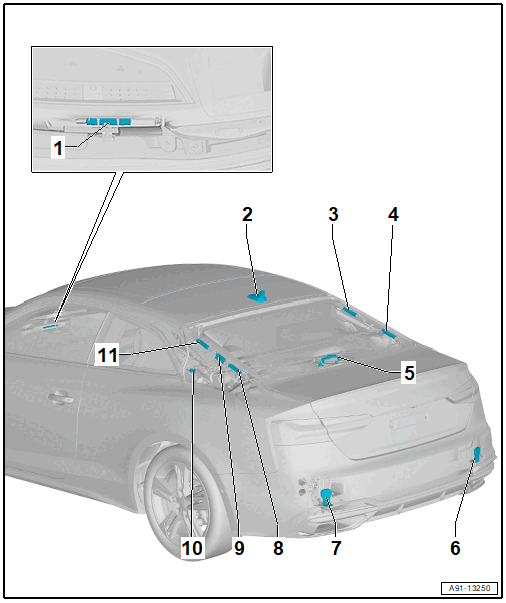

- Emergency Call Module Antenna 3 -R323-
- Only for IV1 through IV8, or JE0 through JE4
- Removing and Installing. Refer to Emergency Call Module Antenna 3 -R323-, REMOVING AND INSTALLING .
- Roof Antenna -R216-
- Bolt tightening specification: 5Nm.
- Antenna assignment depends on equipment
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Antenna Amplifier -R24-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to Antenna Amplifier -R24-, REMOVING AND INSTALLING, COUPE .
- TV Antenna Amplifier 1 -R82-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to TV Antenna Amplifier 1 -R82-, REMOVING AND INSTALLING, COUPE .
- Wireless Data Transmission Antenna -R336-
- Bracket tightening specification to the body: 3 Nm
- Only for 9ZE/9ZV/9ZX
- Removing and Installing. Refer to Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING, COUPE .
- LTE Antenna 3 -R330-
- LTE antenna tightening specification to the bracket: 3 Nm
- Bracket tightening specification to the body: 3 Nm
- Only on 9ZE
- Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, COUPE/SPORTBACK/CABRIOLET, FROM PRODUCT IMPROVEMENT .
- Emergency Call Module Antenna -R263-
- Antenna tightening specification to the bracket: 3 Nm
- Bracket tightening specification to the body: 3 Nm
- Only for IV1 through IV8, or JE0 through JE4
- Removing and Installing. Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, COUPE/SPORTBACK, CABRIOLET, FROM PRODUCT IMPROVEMENT .
- TV Antenna Amplifier 2 -R83-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to TV Antenna Amplifier 2 -R83-, REMOVING AND INSTALLING, COUPE .
- Windshield Antenna Suppression Filter -C18-
- Nut tightening specification: 9 Nm
- Removing and Installing. Refer to Windshield Antenna Suppression Filter -C18-, REMOVING AND INSTALLING, COUPE .
- Wireless Data Transmission Antenna 2 -R366-
- Only for 9ZE/9ZV/9ZX
- Removing and Installing. Refer to Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING, COUPE .
- Antenna Amplifier 2 -R111-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to Antenna Amplifier 2 -R111-, REMOVING AND INSTALLING, COUPE .
