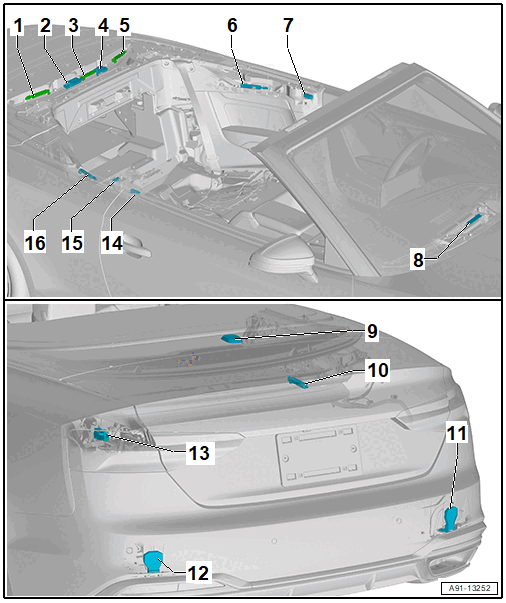

Component Location Overview - Antenna Systems, Cabriolet, From Product Improvement
WARNING: This page is about a different variant/trim than selected.
- Antenna Amplifier -R24-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to Antenna Amplifier -R24-, REMOVING AND INSTALLING, CABRIOLET .
- Emergency Call Module Antenna 2 -R322-
- Bolt tightening specification 4 Nm
- Only for IV1 through IV8, or JE0 through JE4
- Removing and Installing. Refer to Emergency Call Module Antenna 2 -R322-, REMOVING AND INSTALLING, CABRIOLET, FROM PRODUCT IMPROVEMENT .
- TV Antenna Amplifier 3 -R84-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING, CABRIOLET .
- GPS Antenna -R50-
- Removing and Installing. Refer to GPS ANTENNA, REMOVING AND INSTALLING, CABRIOLET .
- Antenna Amplifier 2 -R111-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to Antenna Amplifier 2 -R111-, REMOVING AND INSTALLING, CABRIOLET .
- TV Antenna Amplifier 2 -R83-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to TV Antenna Amplifier 2 -R83-, REMOVING AND INSTALLING, CABRIOLET .
- Bluetooth Antenna -R152-
- Only for 9ZE/9ZV/9ZX
- Removing and Installing. Refer to Bluetooth Antenna -R152-, REMOVING AND INSTALLING, CABRIOLET .
- Emergency Call Module Antenna 3 -R323-
- Only for IV1 through IV8, or JE0 through JE4
- Removing and Installing. Refer to Emergency Call Module Antenna 3 -R323-, REMOVING AND INSTALLING .
- Satellite Tuner Antenna -R172-
- Nut tightening specification: 6 Nm
- Only North America and QV3
- Removing and Installing. Refer to Satellite Tuner Antenna -R172-, REMOVING AND INSTALLING, CABRIOLET .
- Antenna Amplifier 3 -R112-
- Screw tightening specification: 2 Nm
- On the main bearing for the convertible top on the right side
- Removing and Installing. Refer to Antenna Amplifier 3 -R112-, REMOVING AND INSTALLING, CABRIOLET .
- LTE Antenna 3 -R330-
- LTE antenna tightening specification to the bracket: 3 Nm
- Bracket tightening specification to the body: 3 Nm
- Only on 9ZE
- Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, COUPE/SPORTBACK/CABRIOLET, FROM PRODUCT IMPROVEMENT .
- Emergency Call Module Antenna -R263-
- Antenna tightening specification to the bracket: 3 Nm
- Bracket tightening specification to the body: 3 Nm
- Only for IV1 through IV8, or JE0 through JE4
- Removing and Installing. Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, COUPE/SPORTBACK, CABRIOLET, FROM PRODUCT IMPROVEMENT .
- Windshield Antenna Suppression Filter -C18-
- Nut tightening specification: 9 Nm
- Removing and Installing. Refer to Windshield Antenna Suppression Filter -C18-, REMOVING AND INSTALLING, CABRIOLET .
- Wireless Data Transmission Antenna -R336-
- Only for 9ZE/9ZV/9ZX
- Removing and Installing. Refer to Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING, CABRIOLET .
- Wireless Data Transmission Antenna 2 -R366-
- Only for 9ZE/9ZV/9ZX
- Removing and Installing. Refer to Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING, CABRIOLET .
- Digital Radio Reception Impedance Converter -R237-
- Screw tightening specification: 2 Nm
- Only ECE
- Removing and Installing. Refer to Digital Radio Reception Impedance Converter -R237-, REMOVING AND INSTALLING, CABRIOLET .
- Screw tightening specification: 2 Nm
- TV Antenna Amplifier 1 -R82-
- Only Japan
- Removing and Installing. Refer to TV Antenna Amplifier 1 -R82-, REMOVING AND INSTALLING, CABRIOLET .
