Bumper Antennas, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

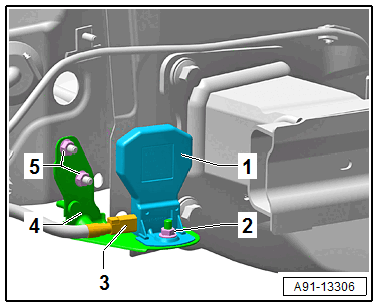

-- Release and disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- for the left bumper antenna -1-.

-- Remove the left bumper antenna -1- from the bracket -4-.

-- Remove the nuts -5- for the bracket -4-

-- Remove the bracket -4- from the vehicle body.
