Bluetooth Antenna -R152-, REMOVING AND INSTALLING, CABRIOLET: Removing
WARNING: This page is about a different variant/trim than selected.

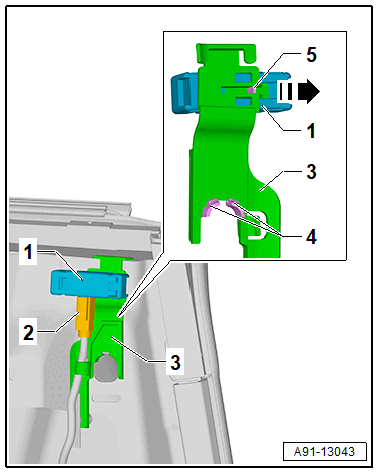

-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the left side trim panel. Refer to OVERVIEW - SIDE TRIM PANEL .
-- Release and disconnect the connector -2-.
-- Remove the wiring harness from the bracket -3-.
-- Release the retaining tabs -4- on the holder -3-.
-- Remove the retainer -3- with the Bluetooth Antenna -R152- -1- upward from the body.
-- Release the retaining tab -5- from the Bluetooth Antenna -R152- -1-.
-- Slide off the Bluetooth Antenna -R152- -1- from the bracket -3- -arrow-.
