Overview - Fuel Tank, TFSI Vehicles With Fwd/AWD
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 20 Nm
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Fuel Line
- To the engine
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Protective Plate
- For the fuel filler neck
- North American market-specific
- Rivet
- Quantity: 2
- Ground Connection
- For protective plate
- For discharging electrostatic charge. Refer to Fig 4.
- Cap
- Attached to the fuel filler door unit with fastener
- Turn until it clicks into place.
- Bolt
- Secures the fuel filler neck and works as the ground connection
- Quantity: 2
- 8 Nm
- Bleeder Line
- To the EVAP Canister
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Fuel Tank
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- depending on the market version with Fuel Tank Temperature and Pressure Sensor -GX49-. Refer to Fig 2.
- Removing and Installing. Refer to FUEL TANK, REMOVING, TFSI VEHICLES .
- Bushing
- Rubber Bushing
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Spring Nut
- For the heat shield
- Quantity: 5
- 2 Nm
- Heat Shield
- For the fuel tank
- Bolt
- 20 Nm

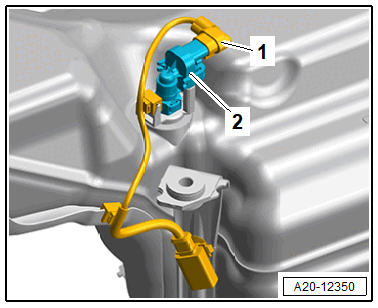

Fuel Tank Temperature and Pressure SensorGX49 - FWD vehicles
- Connector
- Fuel Tank Temperature and Pressure Sensor -GX49-
Fuel Tank Temperature and Pressure SensorGX49 - AWD vehicles
- Connector
- Fuel Tank Temperature and Pressure Sensor -GX49-
For the removal and installation, the fuel tank must be removed. Refer to FUEL TANK, REMOVING, TFSI VEHICLES .
Ground connection routing
-- Route the ground connection as shown.
-- Make sure the following connectors are secure:
- The connector -A arrow- must be connected securely on the metal ring and the connector -B arrow- must be connected securely on the protective plate of the fuel filler neck.
