EVAP Canister, Removing And Installing, Vehicles Without Tank Leak Diagnosis: Removing

Fig 1: EVAP Canister

Courtesy of AUDI OF AMERICA, LLC

-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Remove the right rear wheel housing liner. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Disconnect the vent and breather lines -2, 3 and 4-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

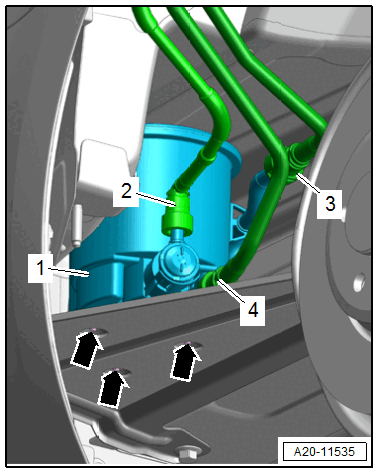

-- If accessible, remove the bolts -arrows- and the EVAP canister -1-.

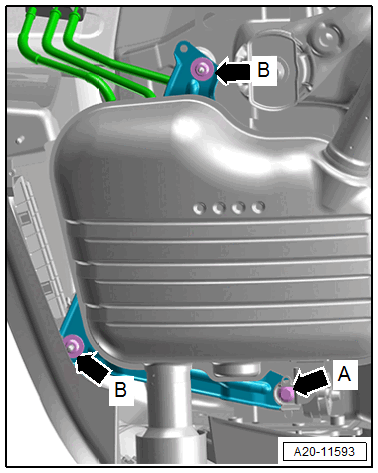

-- Otherwise remove bolt/nuts -A and B arrows- and remove the bracket with EVAP canister toward the front.
