EVAP CANISTER, REMOVING AND INSTALLING, VEHICLES WITH Fuel Tank Pressure Sensor -G400-: Removing

Fig 1: Bleeder Line

Courtesy of AUDI OF AMERICA, LLC

-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Remove the right rear wheel housing liner. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Disconnect the vent and bleeder lines -1, 2 and 3-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

-- Disengage the vent and bleeder lines from the bracket -arrow- and move to the side.

-- Disconnect the connector -4- by unlocking the connector safety catch.

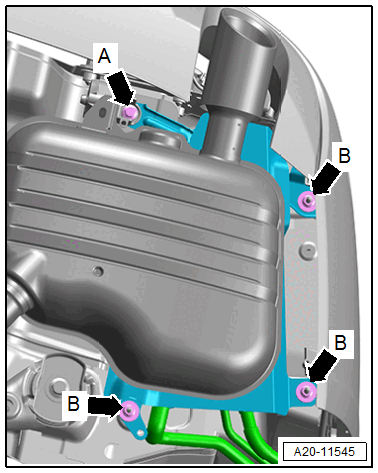

-- Remove the bolt -arrow A- and nuts -B arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the EVAP canister toward the front.
