Overview - Instrument Panel

Fig 1: Exploded View Of Instrument Panel

Courtesy of AUDI

1. Screw/Expanding Clip
   • 1.5 Nm
2. Light Switch Trim
   • Refer to LIGHT SWITCH TRIM, REMOVING AND INSTALLING
   • Press on until it engages audibly
3. Bolts
   • Quantity: 2
   • 3 Nm
4. Driver Side Outer Instrument Panel Vent
   • Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING
   • Press on until it engages audibly
5. Instrument Cluster Trim
   • Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING
6. Bolts
   • Quantity: 3
   • 3 Nm
7. Instrument Panel Side Cover
   • Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING
   • Press on until it engages audibly
8. Bolt
   • 3 Nm
9. Rubber Buffer
   • Quantity: 3
   • Insert into the instrument panel mount at the bottom of the windshield frame
10. Windshield Projection Frame
    • Equipped on some models
    • Removing and Installing. Refer to OVERVIEW - WINDSHIELD PROJECTION (HEAD-UP DISPLAY) .
11. Windshield Projection Cover
    • Equipped on some models
    • Removing and Installing. Refer to OVERVIEW - WINDSHIELD PROJECTION (HEAD-UP DISPLAY) .
12. Center Speaker Trim
    • Replace after removing
    • Refer to SPEAKER TRIM, REMOVING AND INSTALLING
    • Press on until it engages audibly
13. Front Center Defroster Vent
    • Refer to FRONT CENTER DEFROSTER VENT, REMOVING AND INSTALLING
    • Press on until it engages audibly
14. Outer Speaker Trim
    • Refer to SPEAKER TRIM, REMOVING AND INSTALLING
    • Press on until it engages audibly
15. Speaker Mount
    • Refer to SPEAKER MOUNT, REMOVING AND INSTALLING
16. Side Defroster Vent
    • Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING
    • Press on it until it locks
17. Bolts
    • 3 Nm
18. Instrument Panel
    • Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING
19. Bolts
    • Quantity: 4
    • 3 Nm
20. MMI Screen Cover
    • Vehicles from product improvement. Refer to Fig 2.
    • Refer to MMI SCREEN COVER, REMOVING AND INSTALLING
    • Press on until it engages audibly
21. Bolt
    • Quantity: 2
    • 3 Nm
22. Bolt
    • Quantity: 6
    • 3 Nm
23. A/C Display Control Head Trim
    • Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING
    • Press on until it engages audibly
24. Screw/Expanding Clip
    • Quantity: 3
    • 1.5 Nm
25. Center Vent / Outer Front Passenger Side Instrument Panel Vent
    • Refer to CENTER VENT, REMOVING AND INSTALLING
    • Press on until it engages audibly

MMI screen cover - vehicles from product improvement

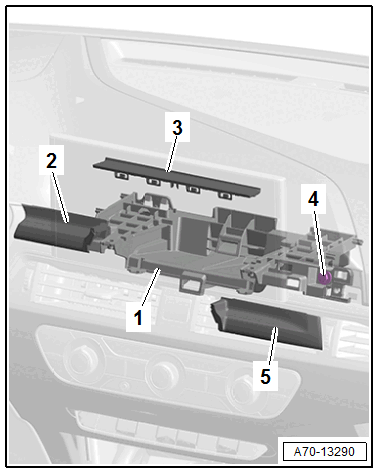

Fig 2: MMI Screen Cover - Vehicles from Product Improvement

Courtesy of AUDI

1. Infotainment system display bracket; removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY BRACKET, REMOVING AND INSTALLING .
2. Left cover - clip in the bracket; removing and installing. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING, VEHICLES FROM PRODUCT IMPROVEMENT .
3. Center cover - clipped on the display; removing and installing. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING, VEHICLES FROM PRODUCT IMPROVEMENT .
4. Bolt (quantity 3) - 3 Nm
5. Right cover - clip in the bracket; removing and installing. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING, VEHICLES FROM PRODUCT IMPROVEMENT .
