Infotainment System Display Bracket, Removing And Installing: Removing
-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
-- Remove the light switch trim. Refer to LIGHT SWITCH TRIM, REMOVING AND INSTALLING .
-- Remove the A/C display control head trim. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .
-- Remove the MMI screen covers. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING, VEHICLES FROM PRODUCT IMPROVEMENT .
-- Remove the center vent / outer front passenger side instrument panel vent. Refer to CENTER VENT, REMOVING AND INSTALLING .

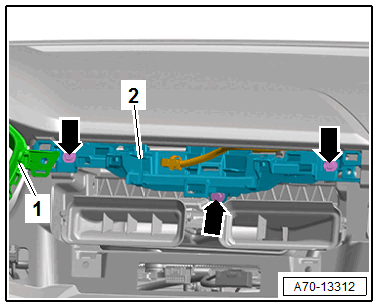

-- Remove the bolts -arrows-.
-- If installed, pull back the instrument cluster -1- slightly.
-- Remove the bracket -2- for the Infotainment system display toward the rear from the infotainment system.
-- Unclip the wire on the bracket and remove the infotainment system display bracket.
