FIBER-OPTIC CABLE FOR Front Center Console Ambient Lighting Bulb 1 -L193- /Front Center Console Ambient Lighting Bulb 2 -L194-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

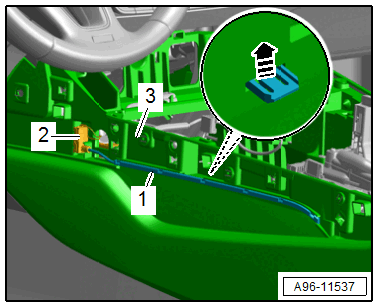

GWWA96-11537Courtesy of AUDI

-- Remove the center console decorative trim. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .

-- Release the retainers in the direction of the -arrow-.

-- Remove the fiber-optic cable -1- from the center console -3-.

-- Remove the fiber-optic cable from the bulb -2-.
