Overview - 3-Spoke Steering Wheel With Round Airbag Unit

WARNING: This page is about a different variant/trim than selected.

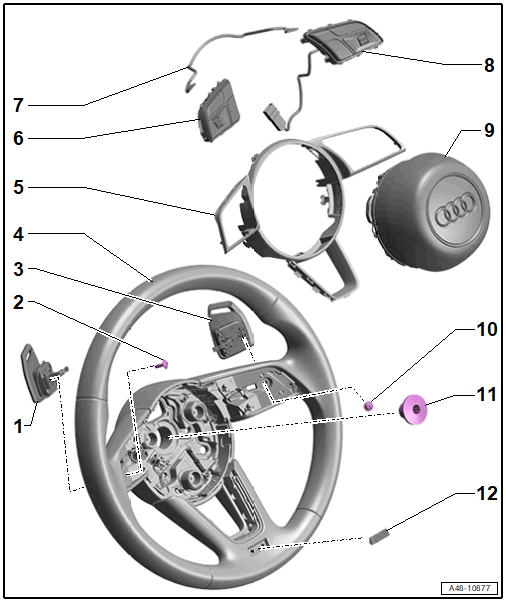

Fig 1: Exploded View Of 3-Spoke Steering Wheel With Round Airbag Unit

Courtesy of AUDI OF AMERICA, LLC

Tiptronic Downshift Button -E480-
- Overview. Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL .
Bolt
- Tightening specification. Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL .
Tiptronic Upshift Button -E479-
- Overview. Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL .
Three-Spoke Steering Wheel
- Removing and installing. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
Trim
- For the steering wheel
Left Multifunction Buttons on Steering Wheel -E440-
- Overview. Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL .
Wire
Right Multifunction Buttons on Steering Wheel -E441-
- Overview. Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL .
Airbag Unit
WARNING:
Pyrotechnic components increase the risk of injury.
- Follow the safety precautions when working on the airbag. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and Installing. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL .
Bolt
- Steering Wheel Reutilization: 50 Nm
- Steering Wheel New: 30 Nm +90°
- Replace after removing
Emblem
