Suspension Strut, Removing And Installing, RS Competition: Installing
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal while noting the following:

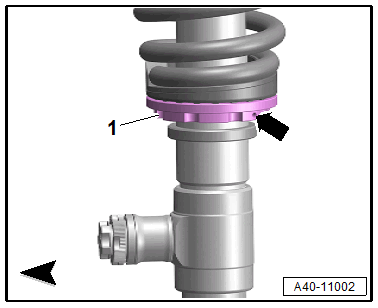

- Installation position. Refer to Figure.
-- Loosen the bolt -arrow- and insert the adjusting nut -1- all the way downward.
-- Install the shock absorber fork. Refer to SHOCK ABSORBER FORK, REMOVING AND INSTALLING .
-- Note the installation position. Refer to Installing .
-- Adjustment of the spring. Refer to the appropriate Service Information.
After replacing the struts:
- Adjust the headlamps. Refer to HEADLAMP, ADJUSTING .
- Driver Assistance Systems Front Camera, Calibrating. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
